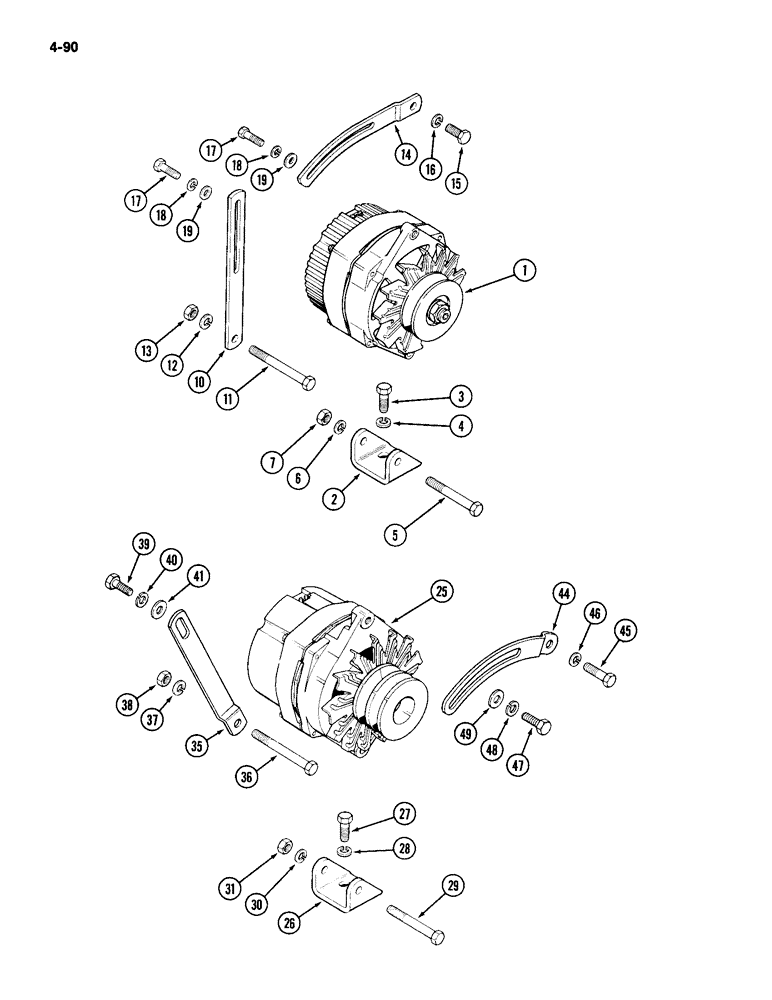

Запчасти Case IH 2094 (4-090) - ALTERNATOR MOUNTING, 72 AMPERE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - See Figure 4-92 through 4-94

1шт.

2

A160391

BRACKET

- alternator mounting

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

A59098

STRAP

- rear support

1шт.

11

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

A145326

STRAP

- adjusting

1шт.

15

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 1.25 x 25 mm

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

195-103

WASHER,5/16"

- 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 mm)

2шт.

25

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figure 4-94, 105 ampere

1шт.

26

A160391

BRACKET

- alternator mounting, 105 ampere

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

105 ampere Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

1шт.

29

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

105 ampere Hex, 3/8"-16 x 3", G5

1шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 105 ampere 3/8"-16, G5

1шт.

35

A163125

STRAP

- rear support, 105 ampere

1шт.

36

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

105 ampere Hex, 3/8"-16 x 3 1/2", G5

1шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 105 ampere 3/8"-16, G5

1шт.

39

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

105 ampere Hex, M10 x 25, 8.8, Full Thd

1шт.

40

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, 105 ampere

1шт.

41

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), 105 ampere

1шт.

44

A163126

STRAP

- alternator adjusting, 105 ampere

1шт.

45

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

105 ampere Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

1шт.

47

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

105 ampere Hex, M10 x 25, 8.8, Full Thd

1шт.

48

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, 105 ampere

1шт.

49

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), 105 ampere

1шт.
