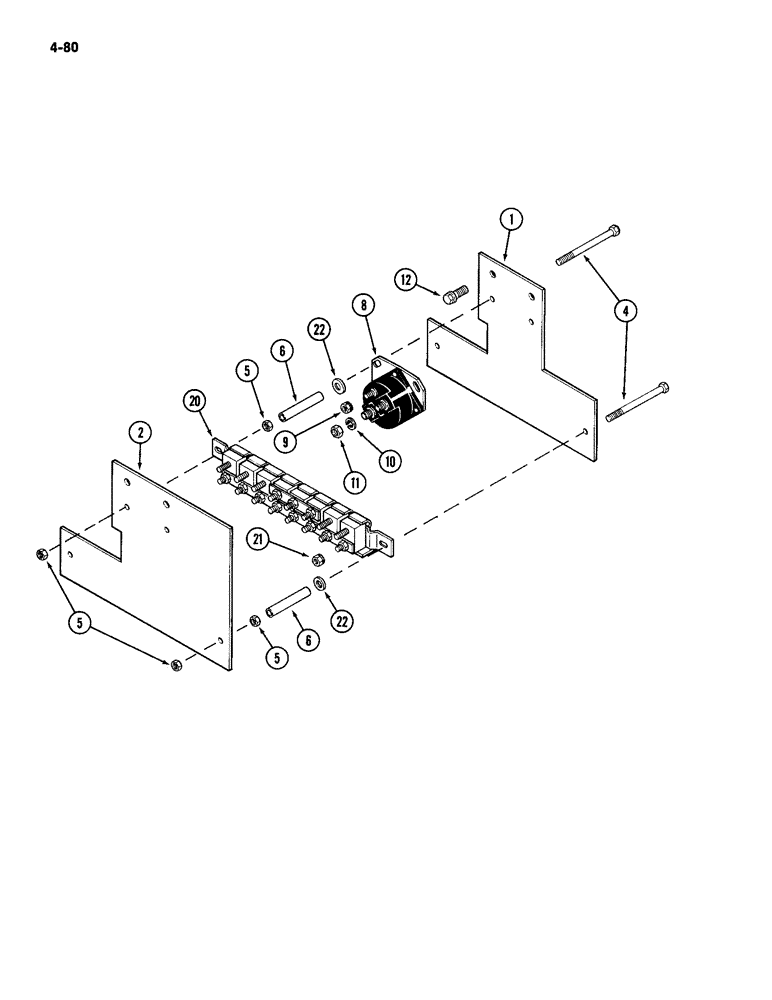

Запчасти Case IH 2094 (4-080) - SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

1

A164563

BRACKET

- mounting, solenoid and circuit breaker

1шт.

2

A164992

PLATE ASSY.

PLATE - solenoid and circuit breaker

1шт.

4

113-28

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

6

R25287

TUBE,0.375" OD x 2.12" L

SPACER - cover to plate

4шт.

8

A39079

SOLENOID

- ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- terminal Keps, No. 10-32

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

(Order 113-103 and 195-521) Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

20

A165723

BREAKER

- circuit (7) 50 ampere (If equipped) (Not Shown)

1шт.

20

A176977

BREAKER

- circuit (8) 50 ampere (If equipped)

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - lock, No. 10-32

6шт.

22

195-518

WASHER,1/4", SAE

4шт.
