Запчасти Case IH 2094 (4-078) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

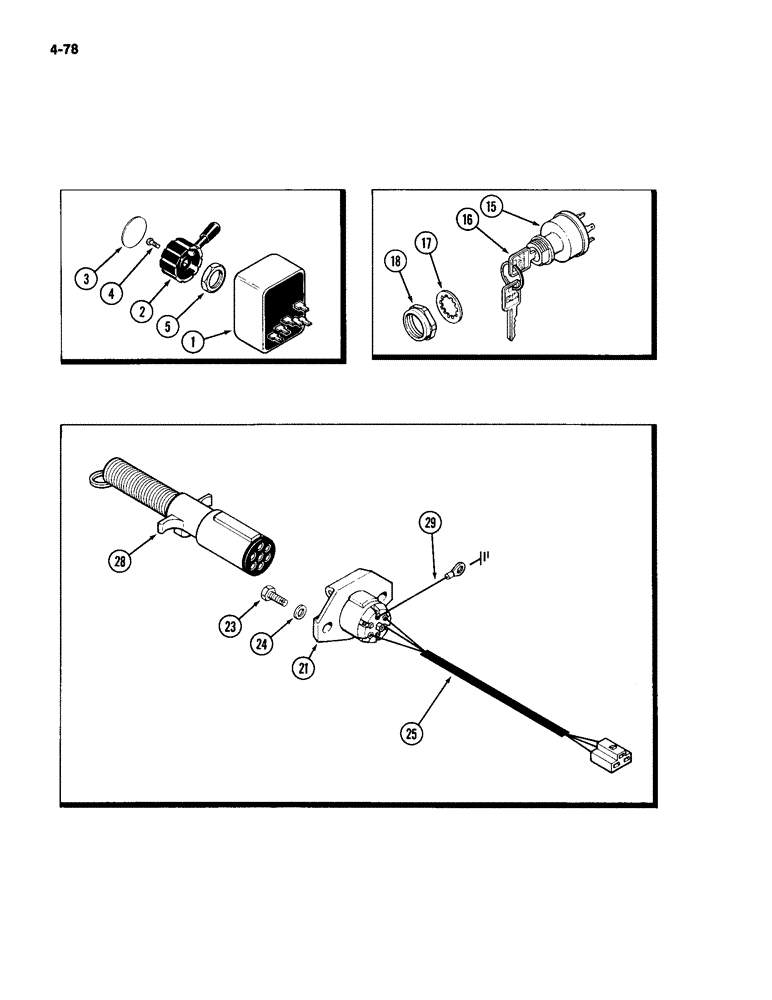

Схема запчастей Case IH 2094 - (4-078) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS
4
3
21
5
25
16
23
24
2
1
28
15
17
18
29

Артикул

Название

Примечание

Количество

1

A77184

SWITCH

- turn signal or flasher

1шт.

2

A141736

KNOB

- turn signal switch

1шт.

3

A160035

PLATE

- knob insert

1шт.

4

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- round head, No. 5-40 x 1/2 inch

1шт.

5

131-428

LOCK NUT,PAL, 3/4"-20

NUT - Palnut, 3/4-20 inch

1шт.

15

A77312

SWITCH

- ignition (Order L61053)

1шт.

16

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

17

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal Shakeproof, 1 inch

1шт.

18

A145855

NUT

- lock, Serial Range: switch-panel

1шт.

21

A145795

CONNECTOR, ELEC

CONNECTOR - 7 point, auxiliary electric outlet

1шт.

23

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - hex self-tapping, 5/16 x 3/4 inch, auxiliary electric outlet

2шт.

24

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 mm), auxiliary electric outlet

2шт.

25

A177485

HARNESS

- auxiliary outlet (Replaces A167266, auxiliary electric outlet

1шт.

28

A139672

PLUG

CONNECTOR - 7 point, auxiliary electric outlet

1шт.

29

A163117

ELECTRICAL WIRE

WIRE - outlet ground, auxiliary electric outlet

1шт.

Выбрано товаров: 15
