Запчасти Case IH 2094 (4-070) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

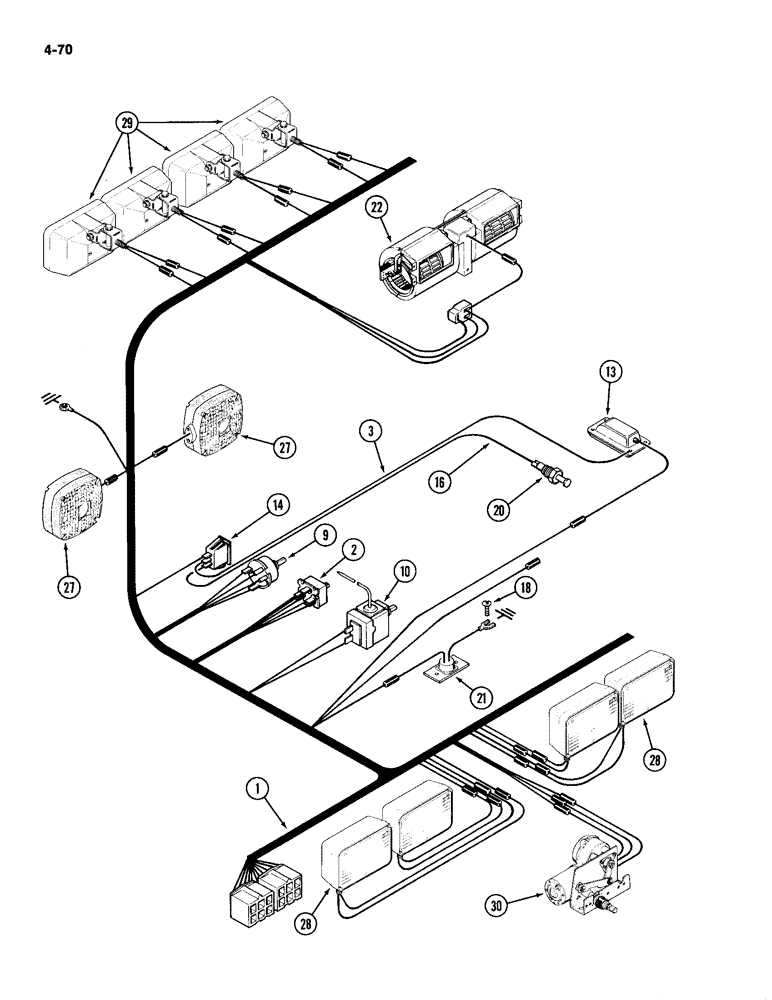

Схема запчастей Case IH 2094 - (4-070) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS
9
27
14
28
3
1
28
22
27
2
21
16
10
20
30
29
13
18

Артикул

Название

Примечание

Количество

1

F66064

HARNESS

ASSEMBLY - headliner wiring (Replaces F64800)

1шт.

2

REF

INSTRUCTION

SWITCH - blower, See Figure, 9-450

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

9

REF

INSTRUCTION

SWITCH - wiper, See Figure 9-450

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning, See Figure 9-450

1шт.

13

REF

INSTRUCTION

LAMP - dome, See Figure 9-448

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp, See Figure 9-450

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch, white, 70 inch (1778 mm)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - Phillips pan head, self-tapping, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - courtesy, See Figure 9-448

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - See Figure 9-454

1шт.

27

REF

INSTRUCTION

LIGHT - flasher, See Figure 4-096

2шт.

28

REF

INSTRUCTION

LAMP - front flood, See Figure 4-100

1шт.

29

REF

INSTRUCTION

LAMP - rear flood, See Figure 4-100

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - windshield, See Figure 9-464

1шт.

Выбрано товаров: 16
