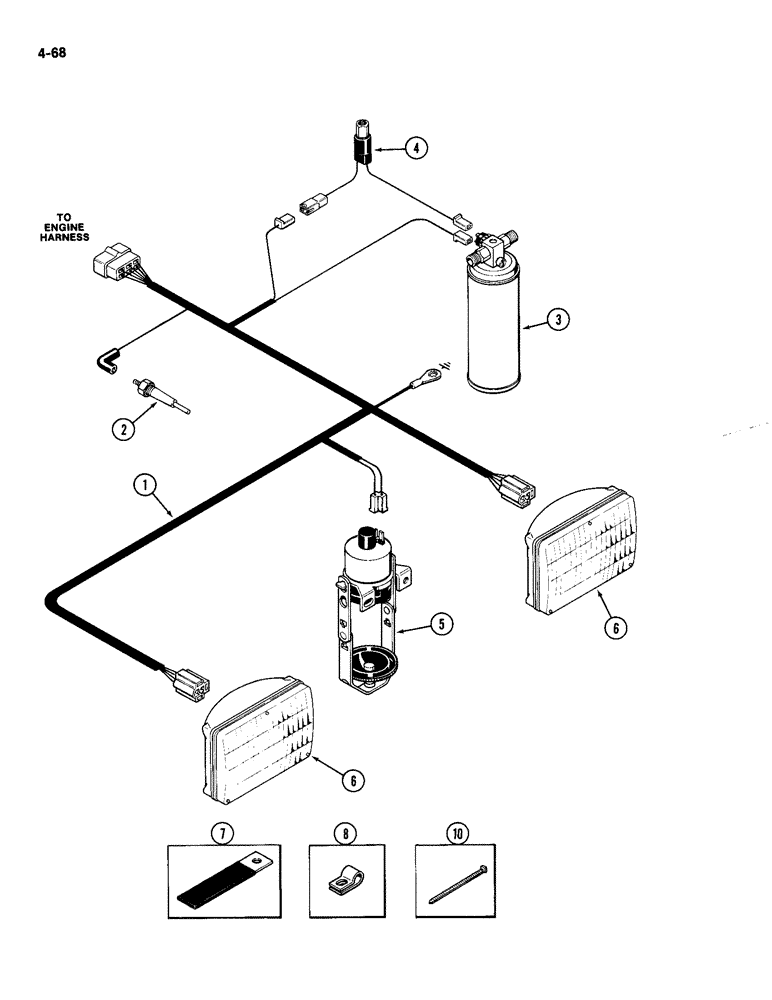

Запчасти Case IH 2094 (4-068) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A163110

HARNESS

- forward

1шт.

2

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning, See Figure 9-472)

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning, See Figure 9-450)

1шт.

5

A143381

SOLENOID

- ether start, See Figure 2-12)

1шт.

6

A139458

LAMP

LIGHT - head, See Figure 4-96

2шт.

7

A149624

CLIP

- wire

3шт.

8

A7922

CLIP

- wire

1шт.

10

R38237

STRAP

- nylon, harness

5шт.
