(4-064) - REAR COMPONENT HARNESS

Запчасти Case IH 2094 (4-064) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

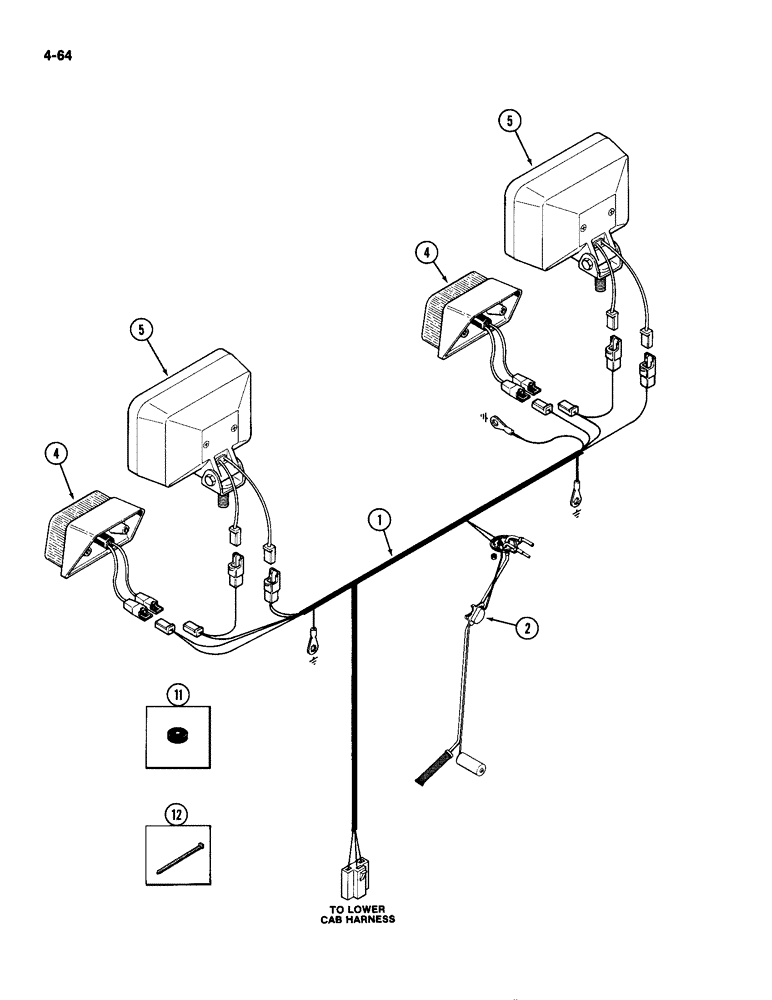

Схема запчастей Case IH 2094 - (4-064) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
4
11
5
5
1
2
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A167264

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level, See Figure 3-054

1шт.

4

A143925

LAMP

TAILLIGHT ASSEMBLY - See Figure 4-096

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, black, See Figure 4-100

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, white (Without Cab), See Figure 4-102

1шт.

11

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

GROMMENT - rear flood lamp wire

2шт.

12

R38237

STRAP

- nylon tie

2шт.
