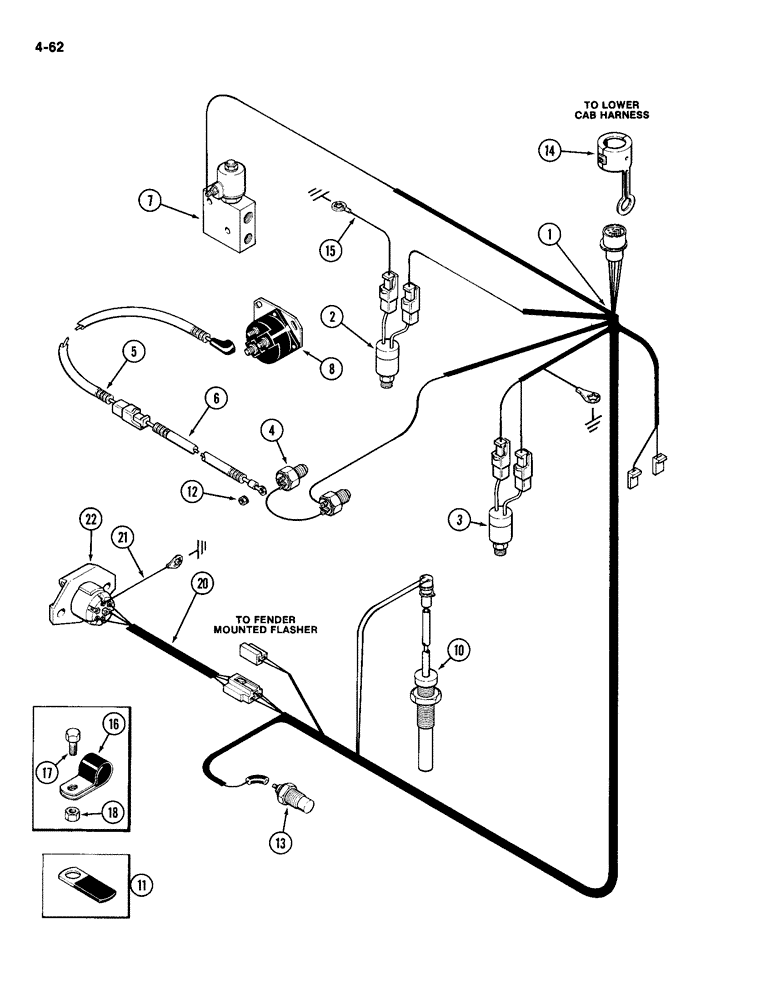

Запчасти Case IH 2094 (4-062) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission (Replaces A169688)

1шт.

2

A162422

SWITCH

- transmission oil pressure (Replaces A66737 and A167895)

1шт.

3

A167895

SWITCH

- transmission filter pressure (Replaces A162422)

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - intermediate solenoid

1шт.

7

A176599

VALVE

- solenoid, differential lock (Replaces A163322)

1шт.

8

REF

INSTRUCTION

SOLENOID - ignition, See Figure 4-80

1шт.

10

A158683

TRANSMITTER

SENSOR - speed

1шт.

11

A38066

CLIP

- wire to PTO housing

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- No. 8-32 hex Keps

4шт.

13

A154283

SWITCH

- transmission temperature

1шт.

14

A163118

CLAMP

- harness connecting

1шт.

15

A167839

ELECTRICAL WIRE

WIRE - ground

1шт.

16

49839

CLAMP

CLIP - wire

1шт.

17

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

- 1/2 inch NC

1шт.

20

A177485

HARNESS

- auxiliary outlet (Replaces A167266)

1шт.

21

A163117

ELECTRICAL WIRE

WIRE - ground, outlet, auxiliary harness

1шт.

22

A145795

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - seven point auxiliary outlet, harness

1шт.
