Запчасти Case IH 2094 (4-060) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

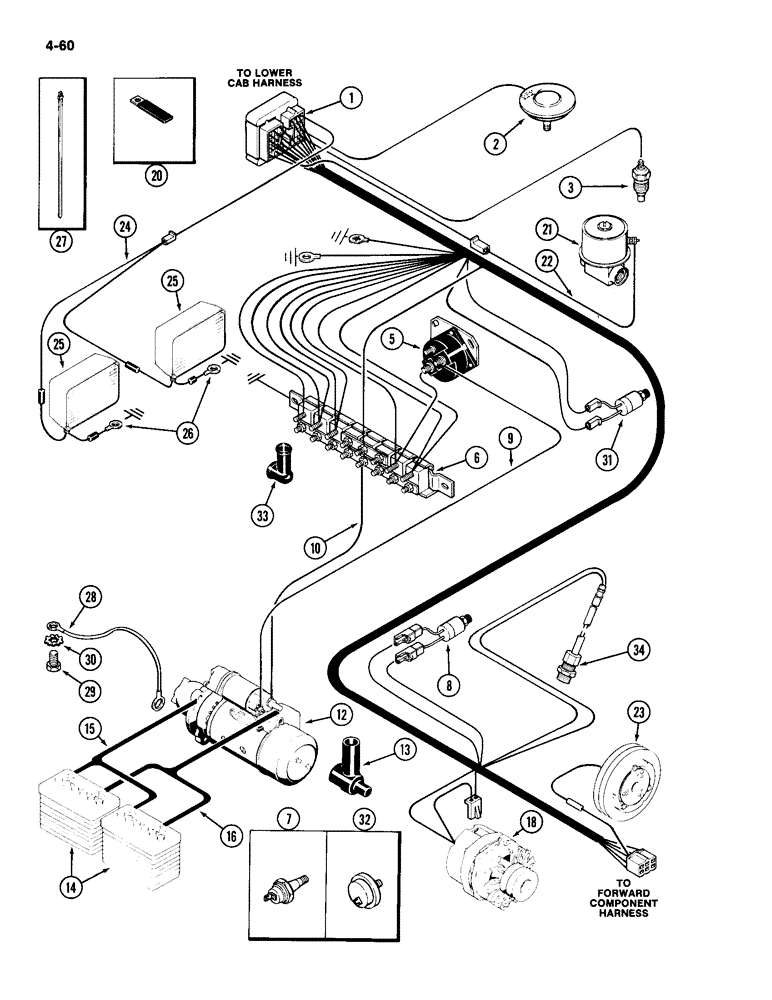

Схема запчастей Case IH 2094 - (4-060) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS
16
3
20
15
7
1
22
25
23
31
24
26
13
29
5
12
25
30
27
28
9
6
21
32
18
34
8
33
10
14
2

Артикул

Название

Примечание

Количество

1

A176966

HARNESS

- engine, Serial Range: -9935641

1шт.

1

A176111

HARNESS

- engine (Replaces A169231), Start Serial: 9935641

1шт.

1

A169231

HARNESS

- engine (Order A176111, A167996 and A167644)

1шт.

2

A154782

SWITCH

- air cleaner restriction

1шт.

3

D65446

SENDER UNIT

SENDER - engine water temperature (Stamped AC-12V-8992016)

1шт.

3

A176566

TRANSMITTER

SENDER - engine water temperature (Stamped AC-5V-25036787)

1шт.

5

A39079

SOLENOID

- ignition, See Figure, 4-080

1шт.

6

A175723

BREAKER - circuit, (7) 50 ampere, See Figure, 4-080, (If equipped) (Not Shown)

1шт.

6

A176977

BREAKER

- circuit, (8) 50 ampere (If equipped)

1шт.

7

A66737

SWITCH, PRESSURE

SWITCH - oil pressure, 15-25 PSI (105-172 kPa) (Used with A169231 harness)

1шт.

Please see service bullitin a - 1685 if ordering part number a66737 or a162940

1шт.

8

A167996

SWITCH

- engine oil pressure, (15-25 PSI) (105-172 kPa) (Used with A176966 and A176111 harness)

1шт.

9

A169555

ELECTRICAL WIRE

WIRE - starter to solenoid (battery terminal)

1шт.

10

A163107

ELECTRICAL WIRE

WIRE - starter to circuit breaker

1шт.

12

REF

INSTRUCTION

STARTER - See Figure, 4-084

1шт.

13

A153796

BOLT

COVER - starter terminal insulator

1шт.

14

REF

INSTRUCTION

BATTERY - 12 volt low maintenance, See Figure 4-82

2шт.

15

A162285

CABLE

- battery, negative, See Figure 4-83

1шт.

16

A162287

CABLE ASSY.

CABLE - battery, positive, See Figure 4-83

1шт.

18

REF

INSTRUCTION

ALTERNATOR - See Figure, 4- 92 - 4-94

1шт.

20

A37179

CLIP

- wire, alternator, Serial Range: wires-engine

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - shutoff, See Figure 4-106

1шт.

22

A165227

ELECTRICAL WIRE

WIRE -, Serial Range: shuttoff-harness

1шт.

23

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor, See Figure 9-470

1шт.

24

A147345

HARNESS

- front flood lamp

1шт.

25

REF

INSTRUCTION

LAMP - lower front (See Figure 4-100

2шт.

26

A147343

ELECTRICAL WIRE

WIRE - front flood ground

2шт.

27

A169433

CABLE TIE,304.8mm L

STRAP, nylon, 11 inch long (279 mm) (Order L18337)

5шт.

28

A165301

ELECTRICAL WIRE

WIRE - cab ground

1шт.

29

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

30

193-72

LOCK WASHER

- internal-external shakeproof, 3/8 inch

1шт.

31

A167644

PRESSURE SWITCH

SWITCH - oil pressure, 40 PSI (275.8 kPa) (Used with A176966 and A176111 harness)

1шт.

32

A162940

SWITCH

- oil pressure, 40 PSI (275.8 kPa) (Used with A169231 harness)

1шт.

33

A21753

CAP

NIPPLE - wire terminal

2шт.

34

A162939

MAGNET

SENSOR - magnetic engine RPM, See Figure 3-40

1шт.

Выбрано товаров: 35
