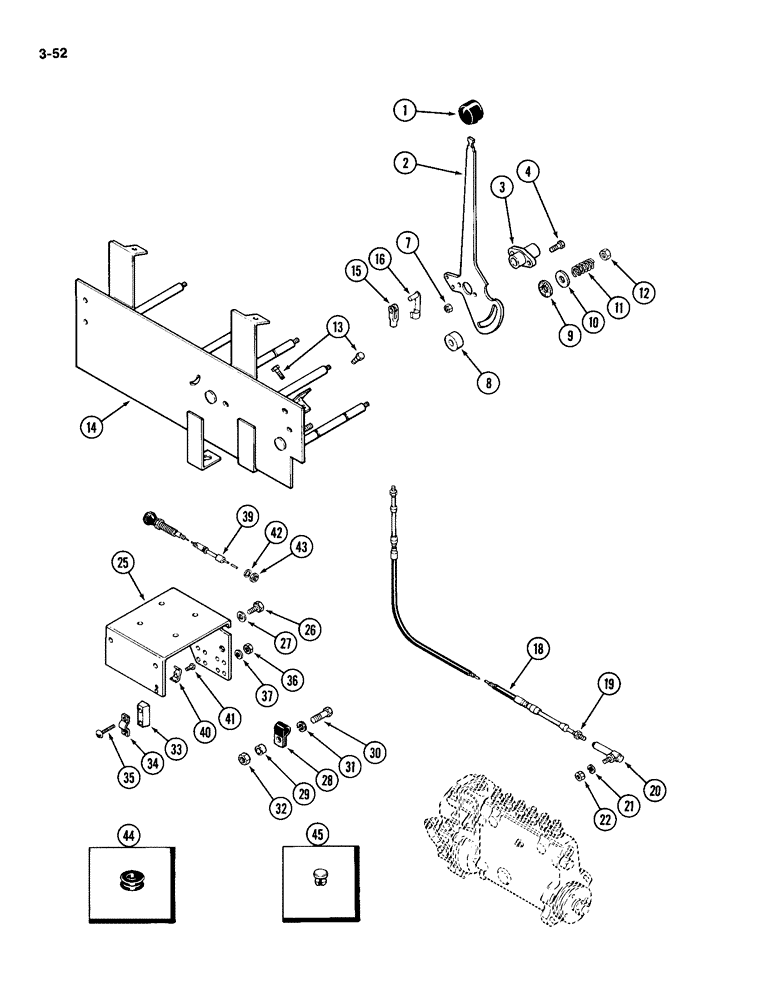

Запчасти Case IH 2094 (3-52) - THROTTLE CONTROL, 504BD DIESEL ENGINE (03) - FUEL SYSTEM

1

A167957

KNOB

- throttle lever, red

1шт.

2

A141390

LEVER

- hand, throttle control

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - pivot, hand lever

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

8

A160622

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm)

1шт.

11

A65583

SPRING

- fiction disc pressure

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

2шт.

13

A67294

BOLT

- lock, lever adjustment

2шт.

14

REF

INSTRUCTION

SUPPORT - console control, See Figure 9-386

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - control cable to lever

1шт.

16

A149683

PIN

- spring

1шт.

18

A67296

CABLE

ASSEMBLY - control

1шт.

19

129-315

NUT,#10-32, LH

2шт.

20

A165466

BALL JOINT

FITTING - control cable throttle

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

129-121

NUT,1/4"-28, G5

1шт.

25

A160611

BRACKET

- control cables

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

CLIP - shutoff cable

1шт.

29

A59660

SPACER

- clip

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

33

A160612

SPACER

- clamp, throttle cable

1шт.

34

A75815

CLAMP

- throttle cable

1шт.

35

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- round head, No. 10-24 x 1-1/4 inch

1шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

39

A164766

CABLE

- stop control, fuel pump (Order A165986)

1шт.

40

B51765

CLIP

- stop cable

1шт.

41

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, No. 8-32 x 1/2 inch

1шт.

42

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

43

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

44

A141389

GROMMET

- control cables

2шт.

45

A162961

PLUG

- control cables, 11/16 inch ID (17 mm)

1шт.
