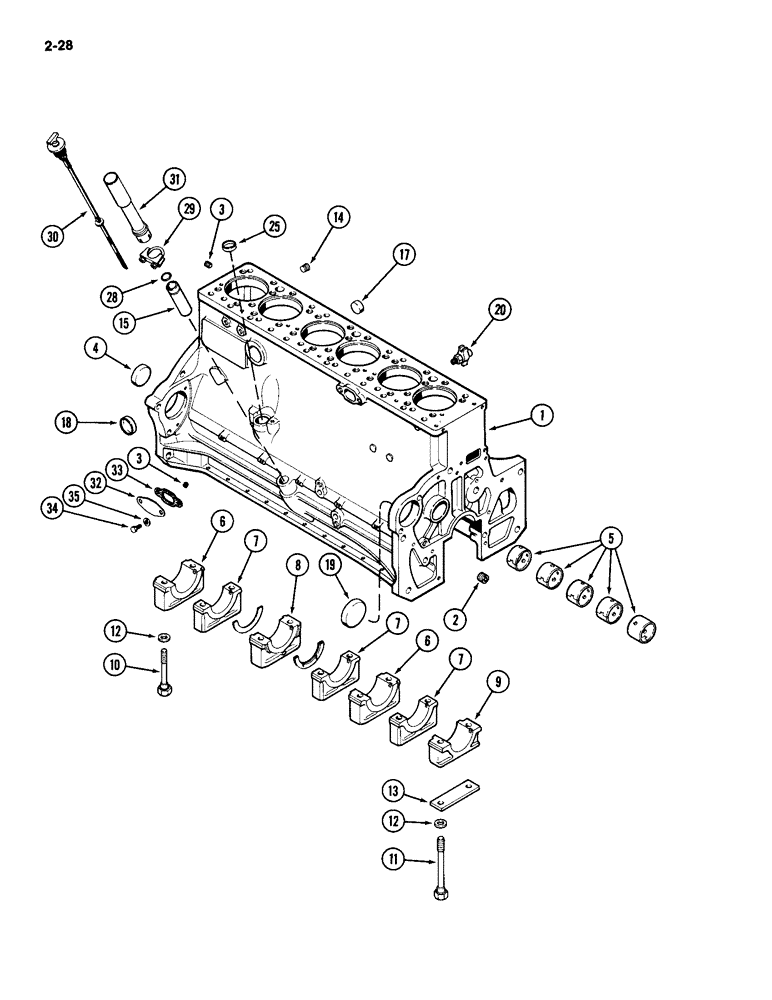

Запчасти Case IH 2094 (2-28) - CYLINDER BLOCK, 504BD DIESEL ENGINE (02) - ENGINE

A153934

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters), Includes: Refs. 1 - 20

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Refs. 2 - 20

1шт.

1

AR77832

REMAN-BASIC ENGINE

Remanufactured

1шт.

1

AC77832

CORE-BASIC ENGINE

Return Number

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- oil gallery, hex socket head, 3/8 inch PT

4шт.

3

221-1849

PLUG

- oil gallery, hex socket head, 1/8 inch PT

6шт.

4

A24361

PLUG

- camshaft hole, cup, 2-3/8 inch (60 mm)

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-27)

1шт.

6

A154391

CAP

- main bearing, wide

2шт.

7

A154390

CAP

- main bearing, narrow

3шт.

8

A154392

CAP

- main bearing, thrust

1шт.

9

A154389

CAP

- main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - hex special, 5/8 NC x 4-15/16 inch

12шт.

11

A66949

STEP BOLT

BOLT - hex special, 5/8 x 7-3/16 inch

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 3/16 inch (16 x 25 x 5 mm)

14шт.

13

A58859

SHIM,.005" Thk

Oil pump to brg. cap (0.14 mm) .005" Thk

1шт.

14

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, turbocharger drain hole, 3/4 inch

1шт.

15

A34540

TUBE

- oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

- left side and rear, 1-3/8 inch cup (35 mm)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

- right side heater hole, 2 inch cup (51 mm)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- cup, 3-1/4 inch (83 mm)

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

25

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- tube seal, 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 3 mm)

1шт.

29

L47766

CLAMP

- tube

1шт.

30

A154241

DIPSTICK

- oil level, large mouth

1шт.

31

A153835

TUBE

- extension, large mouth

1шт.

32

A58851

PLATE

- oil cooler water opening

1шт.

33

A58670

GASKET

- plate

1шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.
