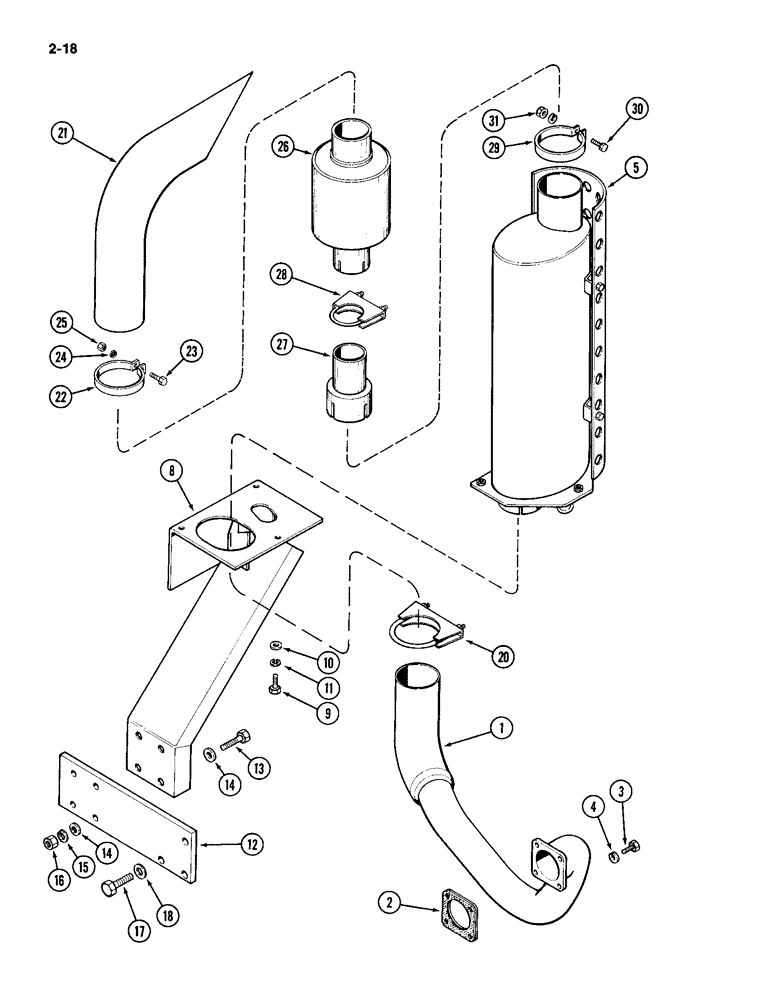

Запчасти Case IH 2094 (2-18) - VERTICAL MUFFLER, 504BD DIESEL ENGINE (02) - ENGINE

A162369

MUFFLER ATTACHMENT - vertical muffler (Machinery Item), Includes: Refs. 1 - 9

1шт.

1

A162293

PIPE

- exhaust

1шт.

2

L14218

MANIFOLD GASKET

CLAMP - exhaust pipe

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A162977

MUFFLER

- exhaust

1шт.

8

A162590

BRACKET

- muffler mounting

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

10

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

A162592

BRACKET

PLATE - stiffener, side rail

2шт.

13

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

14

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

8шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

17

113-2617

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

Hex, 5/8"-11 x 2-1/4", G8

3шт.

18

A35147

WASHER

- hardened

3шт.

20

A162896

CLAMP

ASSEMBLY -, Serial Range: muffler-exhaust

1шт.

21

A147045

PIPE

- exhaust extension

1шт.

22

A162895

CLAMP

- extension

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC, Includes: Refs. 26 - 31

1шт.

A176169

SPARK ARRESTOR KIT (Order Components)

1шт.

26

A135430

ARRESTER

- spark

1шт.

27

A176170

ADAPTOR

1шт.

28

A135505

CLAMP

- (Order L73722)

1шт.

29

A162895

CLAMP

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.
