Артикул
Название
Примечание
Количество
A141060
COMPRESSOR

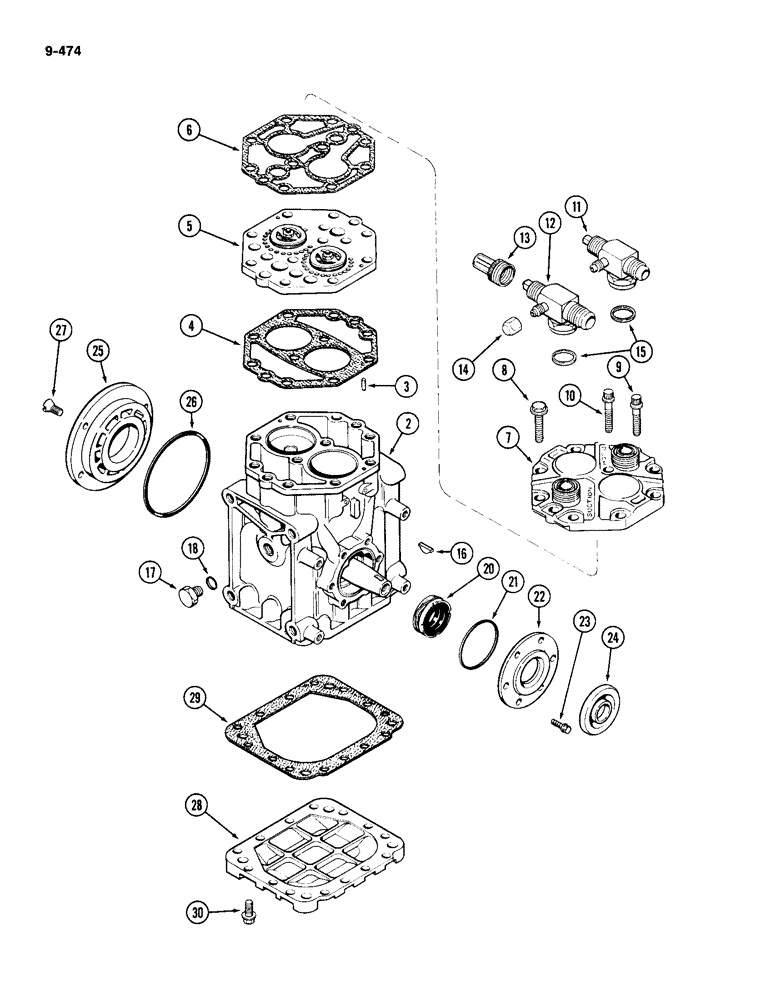

COMPRESSOR ASSEMBLY - (York #ER210L-20126T), Includes: Refs. 2 - 30
1шт.
1924004C2
REMAN-A/C COMPRESSOR
Reman For New P/N A141060
1шт.
1924005C1
CORE-A/C COMPRESSOR
Return Number
1шт.
2
NSS
NOT SOLD SEPARAT
CRANKCASE - compressor (Order A141060)
1шт.
3
138-56
LOCK PIN,1/8" x 11/16", Slotted
PIN, 1/8" x 11/16", Slotted
1шт.
A45420
VALVE
VALVE PLATE KIT, Includes: Refs. 4 - 6
1шт.
4
NSS
NOT SOLD SEPARAT
GASKET - valve, Serial Range: plate-crankcase
1шт.
Part of Gasket Kit, P/N A42964
1шт.
5
NSS
NOT SOLD SEPARAT
PLATE - valve (Order A45420)
1шт.
6
NSS
NOT SOLD SEPARAT
GASKET - cylinder head to valve plate
1шт.
Part of Gasket Kit, P/N A42964
1шт.
7
NSS
NOT SOLD SEPARAT
CYLINDER HEAD - (Order A141060)
1шт.
8
A42949
FLANGE BOLT
BOLT - hex washer head, 5/16 NC x 1-3/8 inch
8шт.
9
A42947
SCREW,5/16" - 18 x 1.375", Grade 6, Steel
SPARE PART SCREW - Ferry head, 12 point cap, 5/16 NC x 1-3/8 inch
2шт.
10
A42948
12 PT SCREW,5/16" - 18 x 1.516", Gr 6
SCREW - Ferry head, 12 point cap, 5/16 NC x 1-17/32 inch
2шт.
11
A42936
VALVE
VALVE ASSEMBLY - roto lock, discharge, 1/2 inch port
1шт.
12
A42937
VALVE
VALVE ASSEMBLY - roto lock, suction, 5/8 inch port, Includes: Refs. 13 and 14
1шт.
13
A42944
CAP
CAP - sleeve, valve stem
2шт.
14
222-981
TUBE NUT,Cap, 3/8"-24, 45 Degree Fl
CAP - valve stem
2шт.
15
A42938
GASKET
GASKET - roto lock to cylinder head
2шт.
16
A42939
KEY
KEY - crankshaft, No. 6 nonrok
1шт.
17
BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd
BOLT - crankcase oil plug, hex, 3/8 NF x 1/2 inch
2шт.
18
NSS
NOT SOLD SEPARAT
O-RING - filter and level plug
2шт.
Part of Gasket Kit, P/N A42964
1шт.
A48248
SEAL
SEAL KIT - front crankcase, Includes: Refs. 20 - 22
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - crankcase
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - plate
1шт.
Part of Gasket Kit, P/N A42964
1шт.
22
NSS
NOT SOLD SEPARAT
PLATE - seal retaining
1шт.
23
A42961
CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd
BOLT - hex washer head, No. 10-24 x 7/16 inch
6шт.
24
A42965
CAP
CAP - dust, crankcase oil seal
1шт.
25
NSS
NOT SOLD SEPARAT
HOUSING - crankcase, rear (Order A141060)
1шт.
26
NSS
NOT SOLD SEPARAT
GASKET - rear housing
1шт.
Part of Gasket Kit, P/N A42964
1шт.
27
NSS
NOT SOLD SEPARAT
SCREW - rear, Serial Range: housing-crankcase
4шт.
28
NSS
NOT SOLD SEPARAT
PLATE - crankcase base
1шт.
29
NSS
NOT SOLD SEPARAT
GASKET - base plate
1шт.
Part of Gasket Kit, P/N A42964
1шт.
30
NSS
NOT SOLD SEPARAT
BOLT - base, Serial Range: plate-crankcase
12шт.
A42964
GASKET
GASKET KIT - complete overhaul, Includes: Refs. 4, 6, 18, 21, 26 and 29
1шт.
Выбрано товаров: 40
