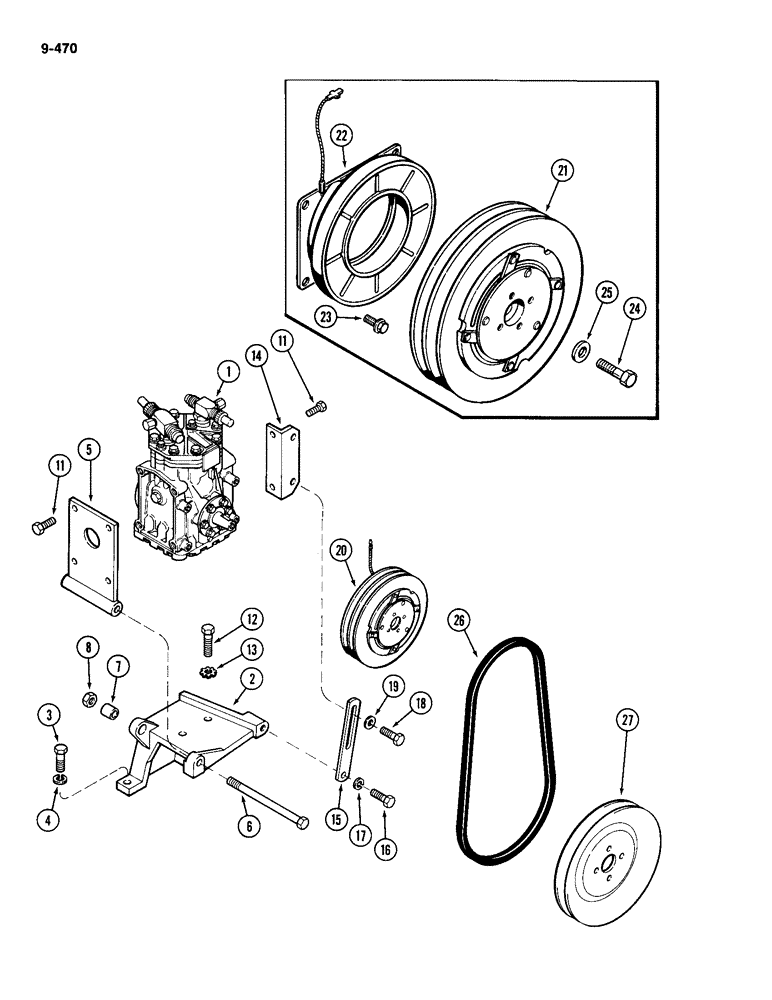

Запчасти Case IH 2094 (9-470) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-474)

1шт.

2

A161525

SUPPORT

- compressor tilt mount

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A161611

SUPPORT

- compressor tilt

1шт.

6

113-2420

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

1шт.

7

A161610

SPACER

- 1/2 x 3/4 x 1-1/4 inch (13 x 19 x 32 mm)

1шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

1шт.

11

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

193-110

LOCK WASHER,Ext Tooth, 3/8"

WASHER - external Shakeproof, 3/8 inch

2шт.

14

A162406

ANGLE

- tilt mount adjusting

1шт.

15

A145521

STRAP

- tilt mount adjusting

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/2 inch (10 x 22 x 2 mm)

1шт.

20

A162008

CLUTCH

ASSEMBLY - compressor (Warner Electric No. I-1411-45B), Includes: Refs. 21 - 24 and bearing, P/N A48399

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - rotor (Order A162008)

1шт.

22

NSS

NOT SOLD SEPARAT

FIELD - pulley (Order A162008)

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - self locking hex head, 1/4 NC x 1/2 inch

4шт.

24

NSS

NOT SOLD SEPARAT

SPACER - clutch attaching bolt, 3/4 O.D. x 1/8 inch thick

1шт.

A48399

BALL BEARING,1.1812" ID x 2.4411" OD x 1.0515"

BEARING - clutch (Not Shown)

1шт.

26

51200857

BELT,0.53" W x 44.55" L

Compressor drive 0.53" W x 44.55" L

1шт.

27

A145140

PULLEY

- compressor drive (on water pump)

1шт.
