Запчасти Case IH 2094 (9-468) - REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS

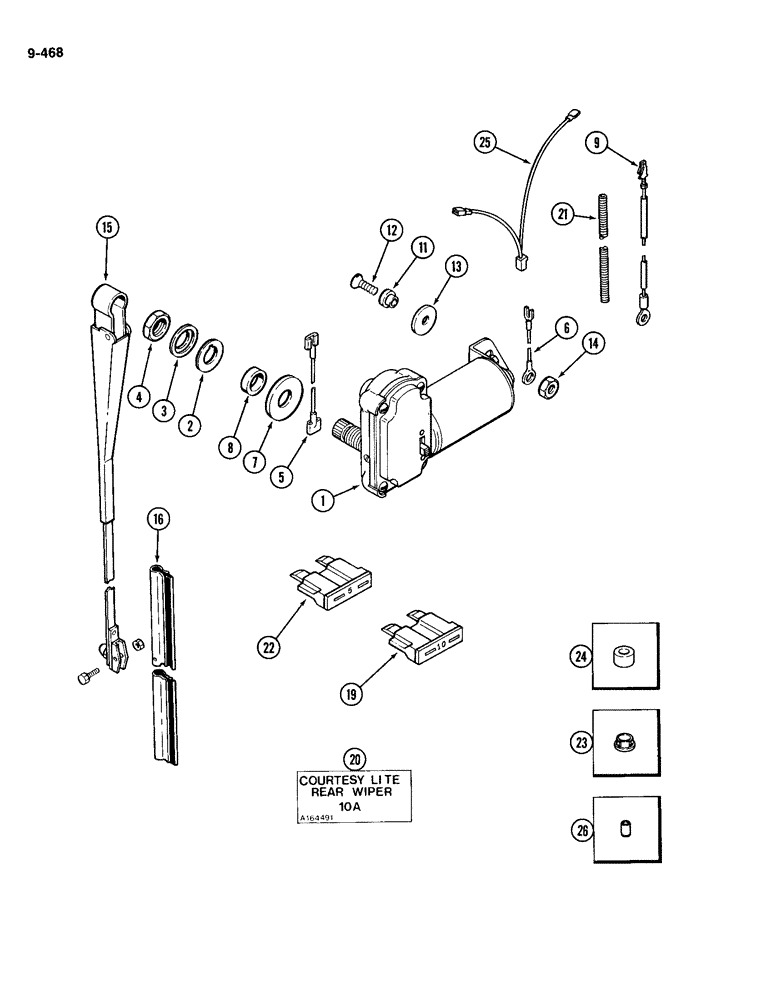

Схема запчастей Case IH 2094 - (9-468) - REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS
15
12
24
4
13
8
23
11
20
26
22
25
14
5
1
3
7
9
19
16
2
21
6

Артикул

Название

Примечание

Количество

A164686

WIPER MOTOR

WIPER KIT - rear window (Machinery Item), Includes: Refs. 1 - 21

1шт.

1

F93209

WIPER MOTOR

MOTOR - wiper, Includes: Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - leather (Order F98209)

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - wiper motor (Order F93209)

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - wiper motor (Order F93209)

1шт.

5

A165311

ELECTRICAL WIRE

WIRE - wiper motor power

1шт.

6

A165075

ELECTRICAL WIRE

WIRE - wiper motor ground

1шт.

7

A165073

WASHER

- nylon, 1-1/2 inch (33 mm) O.D.

1шт.

8

A165074

SPACER

- nylon, 7/8 inch (22 mm) O.D.

1шт.

9

A18164

SHAFT

WIRE - power

1шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- motor mounting

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- Phillips head, No. 10-24 x 3/4 inch

1шт.

13

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

- nylon, 5/16 inch (8 mm) ID

1шт.

14

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

1шт.

15

T41946

ARM

- wiper blade

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - wiper

1шт.

19

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

20

A164491

DECAL

- fuse

1шт.

21

L77320

CONDUIT

- wire

1шт.

22

A149798

FUSE

- 5 ampere (Tan)

1шт.

23

A64468

BUSHING - terminal

1шт.

24

353-701

BUSHING

- harness

1шт.

25

F64856

HARNESS - rear wiper (Order F64723)

1шт.

26

F64483

COVER

CAP - wiper

1шт.

Выбрано товаров: 24
