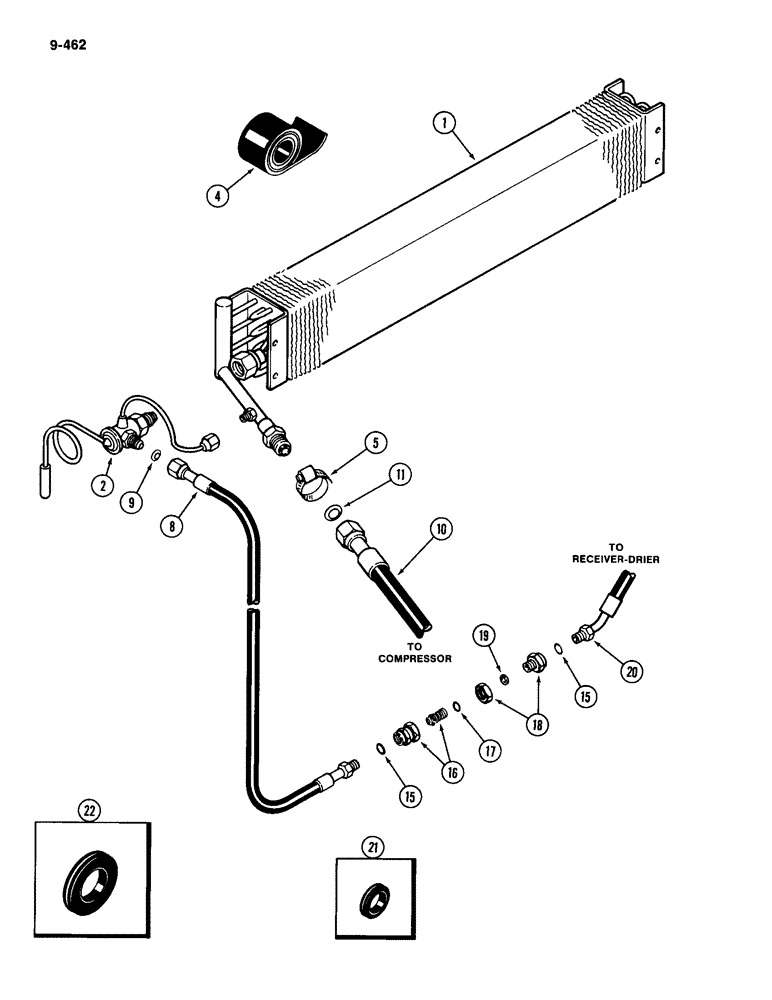

Запчасти Case IH 2094 (9-462) - CAB, AIR CONDITIONING COOLING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator

1шт.

2

F64389

VALVE

- expansion

1шт.

4

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/2 inch (64 x 305 x 3 mm) (Order A42902, cut to desired length)

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4 inch (30 to 44 mm)

1шт.

8

F64304

HOSE

- high side, 5/16 ID x 153 inch long (8 x 3886 mm) (To coupling)

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

10

F64305

HOSE

- low side, 1/2 ID x 153 inch lon (13 mm x 3886 mm) (to compressor)

1шт.

11

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4 tube x 45 degree flare

1шт.

15

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- hose (Order N8539)

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side to reciver-drier hose, Includes: Ref. 17

1шт.

17

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling piston, 1/4 x 3/8 x 1/16 inch (6 x 10 x 3 mm)

1шт.

18

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hose to cab, Includes: Ref. 19

1шт.

19

A42667

GASKET

- coupling

1шт.

20

A145898

HOSE

- to receiver, Serial Range: --receiver-drier

1шт.

21

F64486

GROMMET

- hose

1шт.

22

F64485

GROMMET

- hose

3шт.
