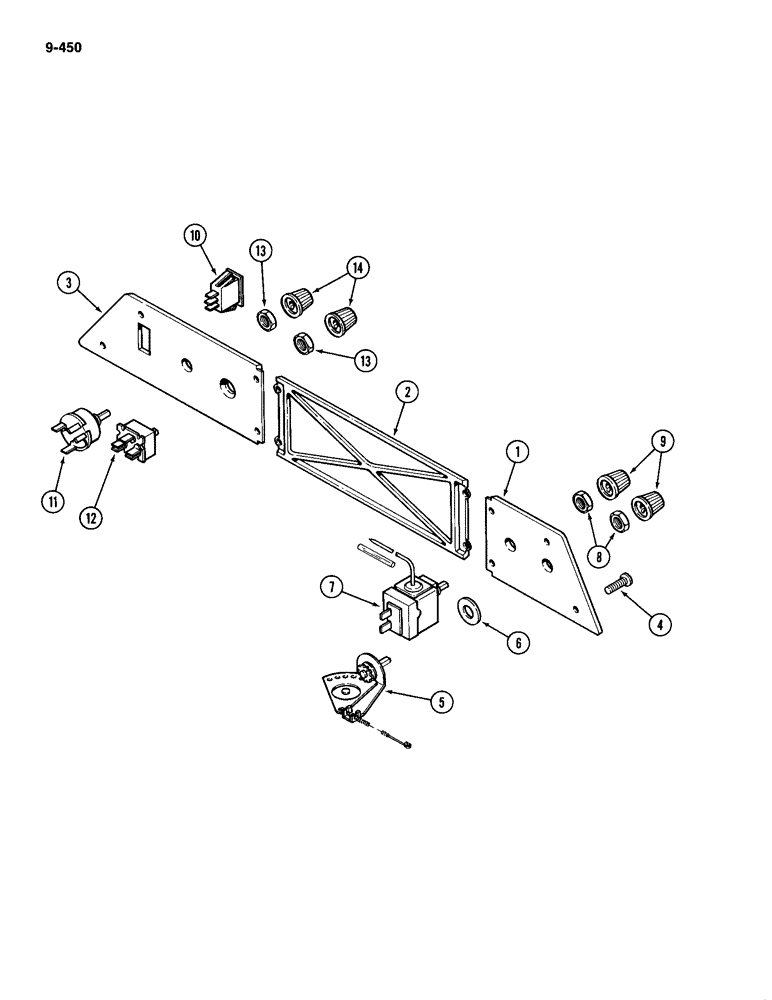

Запчасти Case IH 2094 (9-450) - HEADLINER CONTROL PANEL (09) - CHASSIS/ATTACHMENTS

1

F66128

BEZEL

PANEL - headliner control, front (Replaces F64629)

1шт.

2

F66129

BEZEL & GASKET

PANEL - headliner control, center (Replaces F64629)

1шт.

3

F66139

BEZEL

PANEL - headliner control, rear (Replaces F64629)

1шт.

4

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - pan head slotted, No. 10-16 x 3/4 inch

8шт.

5

F64666

CONTROL,1503.68mm L

- heater

1шт.

6

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

1шт.

7

F43186

SWITCH ASSY

SWITCH - air conditioning (Order L73646)

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

9

F66127

BUTTON

KNOB - control (Replaces F64891)

2шт.

10

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

11

F43359

SWITCH

- wiper

1шт.

12

A42622

SWITCH

- blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

14

F66127

BUTTON

KNOB - control (Replaces F64891)

2шт.
