Запчасти Case IH 2094 (9-440) - CAB, SIDE WINDOW (09) - CHASSIS/ATTACHMENTS

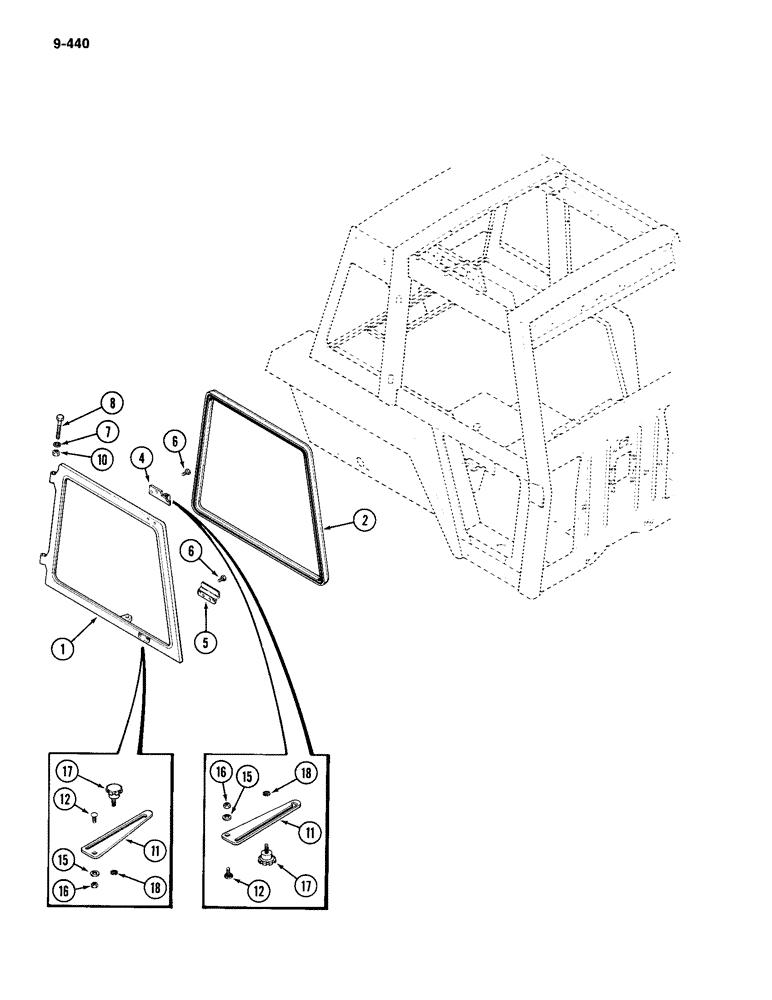

Схема запчастей Case IH 2094 - (9-440) - CAB, SIDE WINDOW (09) - CHASSIS/ATTACHMENTS
17
6
7
17
16
18
11
12
10
16
6
15
2
1
8
11
15
5
4
18
12

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WINDOW ASSEMBLY - right (Includes glass) (Reference No. F97096), Includes: Refs. 1 - 6

1шт.

Order glass and moulding form Figure 9-442.

1шт.

1

F64675

FRAME

- right window

1шт.

2

F64571

SEAL

SEAL - weather 134 inch long (3404 mm)

1шт.

4

F64513

BRACKET

- regulator, upper

1шт.

5

F64533

HANDLE

- window

1шт.

6

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, No. 10-16 x 1/2 inch

6шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin

2шт.

8

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

2шт.

11

F64779

REGULATOR

ARM - regulator, window opening

2шт.

12

111-243

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

2шт.

17

F64253

KNOB

- regulator

2шт.

18

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

Выбрано товаров: 16
