Запчасти Case IH 2094 (9-434) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

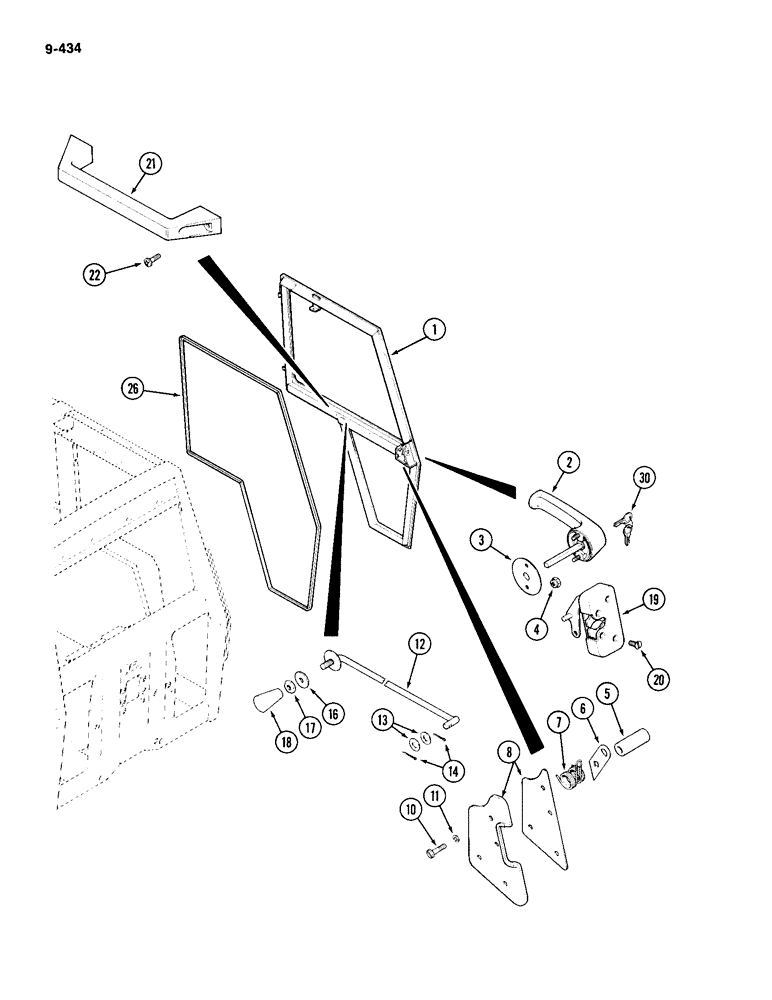

Схема запчастей Case IH 2094 - (9-434) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS
30
16
14
26
20
1
18
21
11
4
2
22
12
6
8
5
13
7
17
10
3
19

Артикул

Название

Примечание

Количество

F97271

DOOR SEAL

DOOR ASSEMBLY - complete, Includes glass, Includes: Refs. 1 - 26

1шт.

Part of Cylinder Repair Kit, P/N G109478

1шт.

1

F97066

DOOR

- cab (Order F97271)

1шт.

2

F66158

HANDLE - outer (Replaces F64704) (Order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- latch shaft, 7/16 x 3/4 x 2 inch (11 x 19 x 51 mm)

1шт.

6

F64371

ARM

- latch

1шт.

7

F64338

SPRING

- latch handle

1шт.

8

F66086

COVER ASSY

COVER - latch, door (Replaces F98275 and F64624)

1шт.

F45162

SPRING

- door cover (Not Shown)

1шт.

10

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- special, 1/4 NC x 1/2 inch

4шт.

11

193-117

WASHER,Ext-Int Tooth, 1/4"

- lock special, 1/4 inch

4шт.

12

F98226

ROD

- latch pull

1шт.

13

F64384

WASHER

- 17/64 x 9/16 x 1/32 inch (7 x 14 x 1 mm)

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam special

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F66155

LATCH

- door rotary (Replaces F64296)

1шт.

20

F45337

SCREW,1/4" - 20 x 1", Gr 5

- special

4шт.

21

F64890

HANDLE

- door, inner (Order F64547)

1шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4 NC x 3/4 inch

2шт.

26

F64880

STRIP

- weather, door frame (Order F64773)

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.

Выбрано товаров: 25
