Запчасти Case IH 2094 (9-432) - CAB ASSEMBLY (09) - CHASSIS/ATTACHMENTS

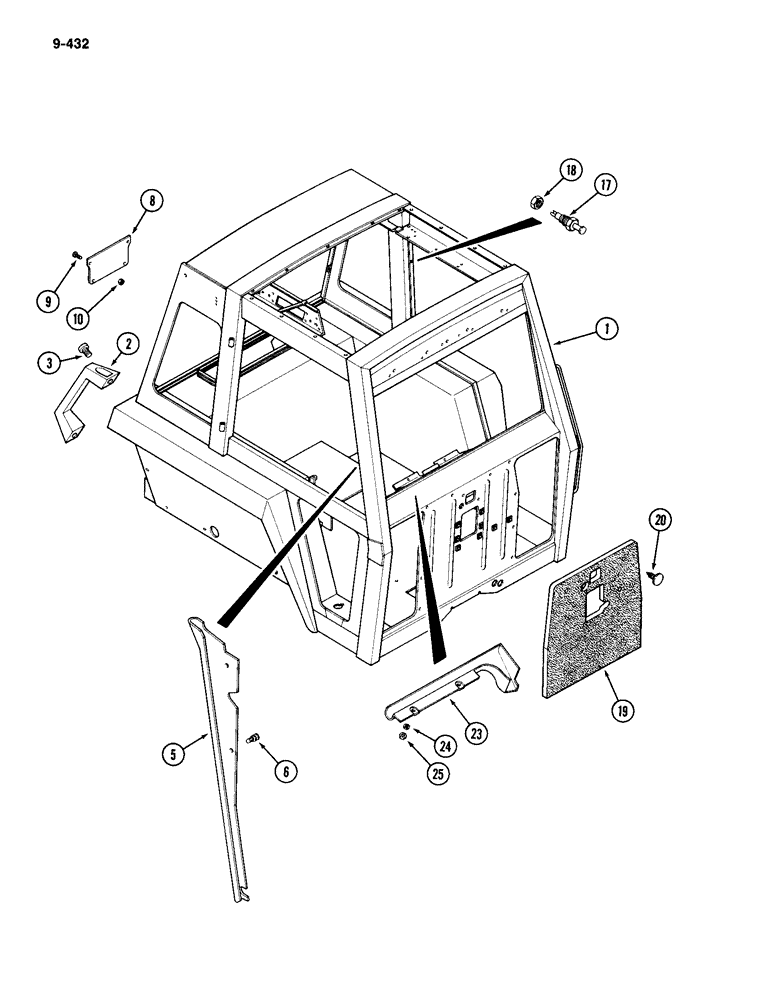

Схема запчастей Case IH 2094 - (9-432) - CAB ASSEMBLY (09) - CHASSIS/ATTACHMENTS
8
1
10
23
19
17
5
18
2
3
25
9
6
20
24

Артикул

Название

Примечание

Количество

F98349

CAB

- with heater, air conditioning and radio speaker and antenna (Machinery Item) (Replaces F98258)

1шт.

F98339

CAB

- with heater, air conditioning, radio speaker and antenna and air/oil seat supports (Machinery Item)

1шт.

F98352

CAB - with heater, air conditioning, radio speaker and antenna (Machinery Item) (Europe Only)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

Part of Cylinder Repair Kit, P/N G109478

1шт.

2

F64547

HANDLE

- rear, frame

2шт.

3

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch, frame

4шт.

5

F64614

COVER ASSY

COVER - harness, frame

1шт.

6

F64646

PIN

- clinch, frame

2шт.

8

A149306

COVER

- rear, fuel tank water trap opening, frame

1шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- No. 10-24 x 1/2 inch slotted pan head, frame

4шт.

10

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, No. 10-24, frame

4шт.

17

F63895

SWITCH

- dome light, door opening, frame

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

Frame 5/16"-18, G5

1шт.

19

A167044

PAD

- firewall noise, frame

1шт.

20

A166346

FASTENER

- firewall pad, frame

6шт.

23

F64719

COVER

- wire harness, frame

1шт.

24

195-124

WASHER,5/16" x 3/4" x .065"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm), frame

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Frame

2шт.

Выбрано товаров: 19
