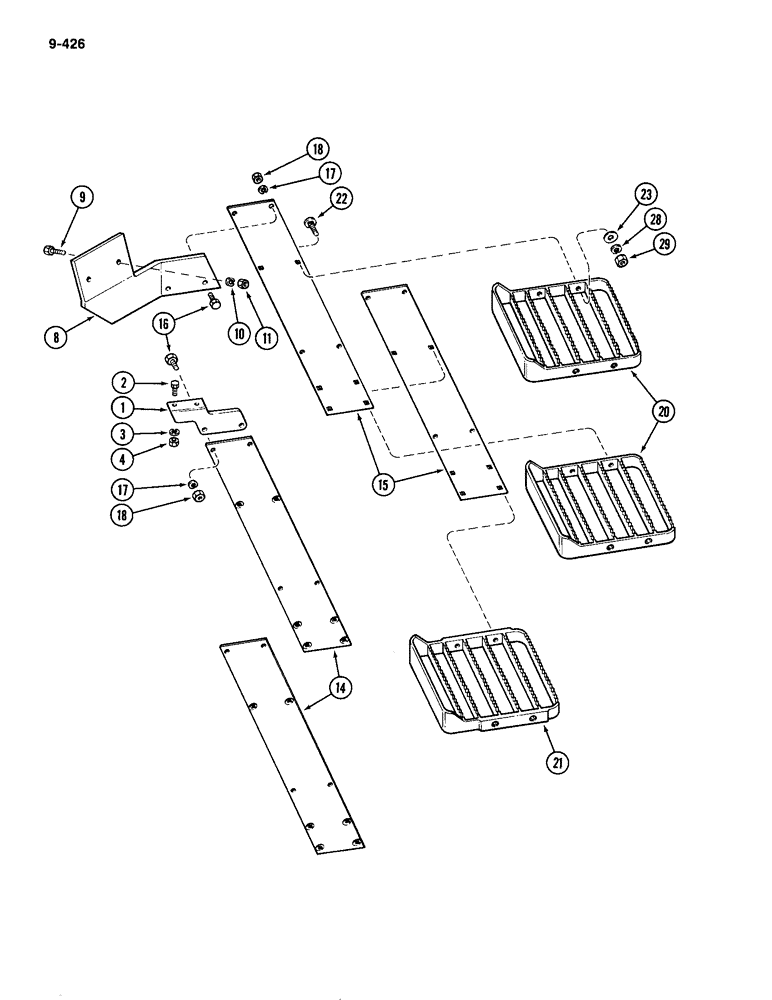

Запчасти Case IH 2094 (9-426) - STEPS (09) - CHASSIS/ATTACHMENTS

1

A177873

BRACKET

PLATE - adapter, step

1шт.

2

113-2266

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

3

192-82

LOCK WASHER,3/8"

3/8"

2шт.

4

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

2шт.

8

A177544

BRACKET

- mounting, step

1шт.

9

113-2266

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

10

192-82

LOCK WASHER,3/8"

3/8"

2шт.

11

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

2шт.

14

A177259

PLATE ASSY.

PLATE - step side, right

2шт.

15

A177273

PLATE

- step side, left

2шт.

16

113-2277

BOLT (SPREADER),Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT - hex, 3/8 NC x 1 inch

4шт.

17

192-82

LOCK WASHER,3/8"

3/8"

4шт.

18

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

8шт.

20

A177097

STEP

- tread, foot

2шт.

21

A177098

STEP

- tread, foot

1шт.

22

118-136

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow, 3/8 NC x 1-1/2 inch

12шт.

23

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

12шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.
