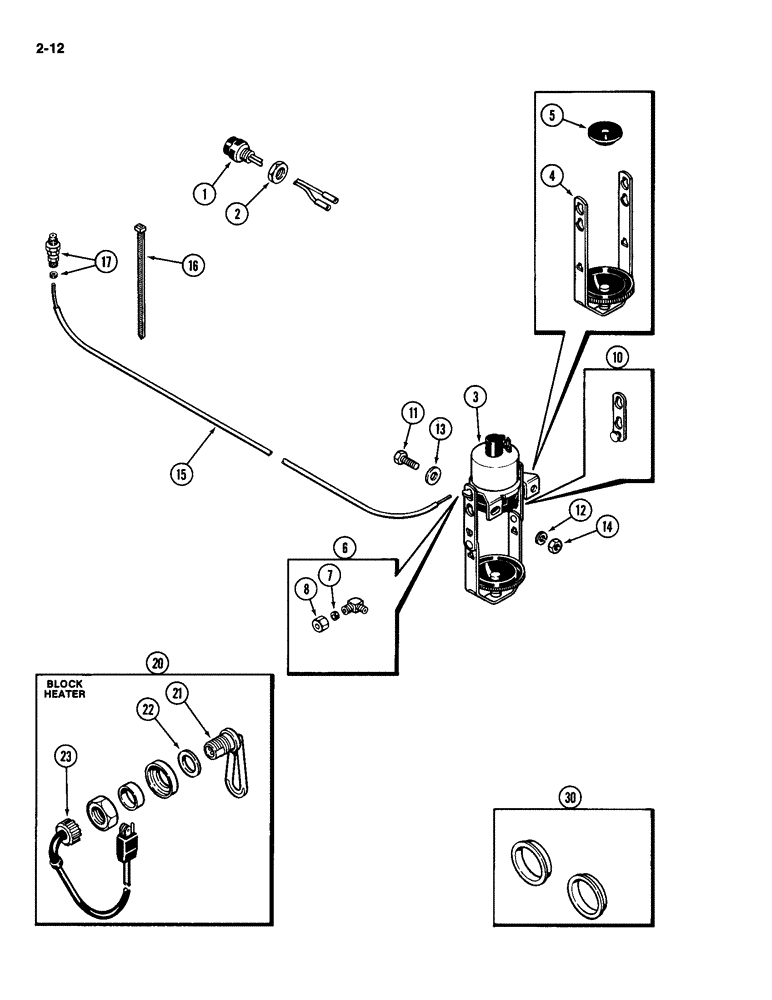

Запчасти Case IH 2094 (2-12) - ETHER STARTING ATTACHMENT, 504BD DIESEL ENGINE (02) - ENGINE

1

A135520

SWITCH

- cold start

1шт.

2

129-127

NUT,5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Refs. 4 - 8

1шт.

4

A45687

CLAMP

HANGER - ether can (Order D77648)

1шт.

5

R30786

GASKET

- ether can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, 1/8 tube, Incl. Refs 7 & 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

(3 mm) 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube (3 mm) 5/16"-24, 45º Fl, Comp

1шт.

10

R30812

LINK

- hanger extension

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 22 mm)

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A149932

TUBE

nylon, solenoid to injector 1/8 O.D. x 81 inch (3 mm x 2057 mm)

1шт.

16

A169433

CABLE TIE,304.8mm L

STRAP, tube - 12 in

4шт.

17

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY - (Includes nut and sleeve)

1шт.

20

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block, Includes: Refs. 21 - 23

1шт.

Subs to three different part numbers, depending on the use. A182017 and A182020 fit in a frost plug hole approximately 1-7/8" diameter. A182059 has a 1" thread.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A155436), cylinder block

1шт.

22

A45114

GASKET

- element, cylinder block heater

1шт.

23

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, with plugs 12 inch long (305 mm), cylinder block

1шт.

A44006

SLEEVE

KIT - block heater, cylinder, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

SLEEVE - block heater hole, 2-1/16 inch diameter (52 mm) (Reference No. A44007), cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

SLEEVE - block heater hole, 2-1/8 diameter (54 mm) (Reference No. A44008), cylinder

1шт.
