Запчасти Case IH 2094 (9-422) - CAB OR 4 POST PROTECTIVE FRAME, FRONT AND REAR MOUNTS (09) - CHASSIS/ATTACHMENTS

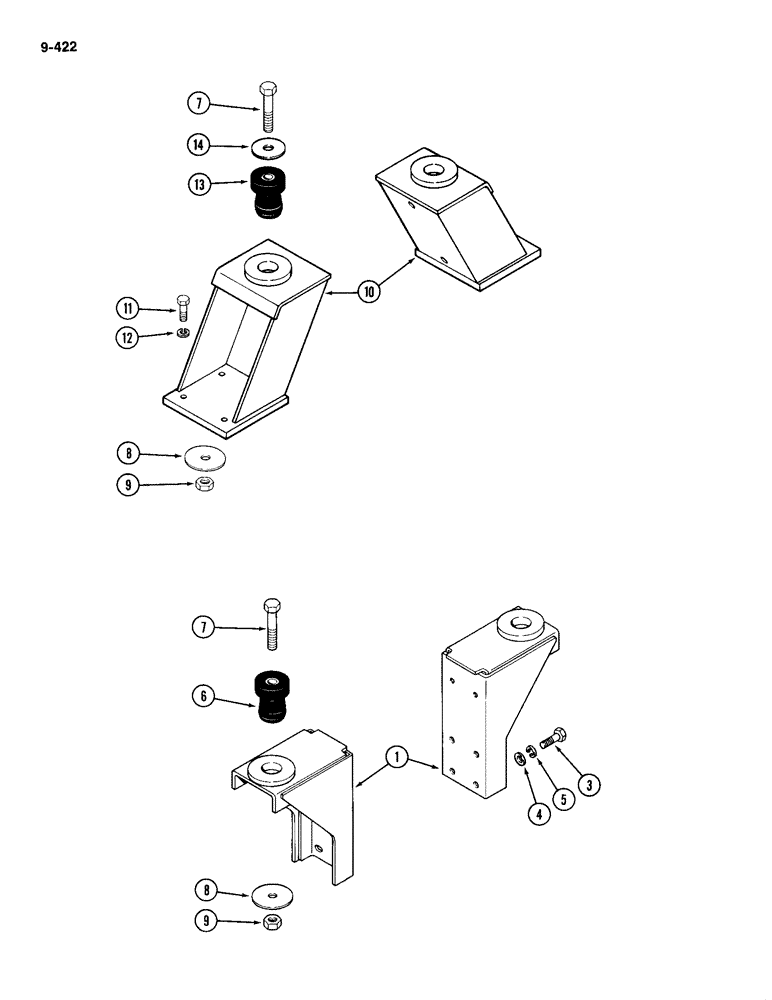

Схема запчастей Case IH 2094 - (9-422) - CAB OR 4 POST PROTECTIVE FRAME, FRONT AND REAR MOUNTS (09) - CHASSIS/ATTACHMENTS
7
4
14
8
9
10
1
8
11
3
9
13
6
5
7
12

Артикул

Название

Примечание

Количество

1

A147255

BRACKET

- cab mounting

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

4

L30674

WASHER

- 17/32 x 1 x 1/8 inch (13 x 25 x 3 mm)

8шт.

5

92-8

LOCK WASHER,1/2"

8шт.

6

A141452

SHOCK ABSORBER

MOUNT - cab front, rubber (color code black)

2шт.

7

113-2648

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/4 inch (Grade 8)

4шт.

8

A141470

WASHER

- cab mounting snubbing, 21/32 x 3 x 1/4 inch (16 x 76 x 6 mm)

4шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

4шт.

10

A149667

MOUNTING PARTS

MOUNT - cab rear

2шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

A141451

SHOCK ABSORBER

MOUNT - cab rear, rubber (color code red)

2шт.

14

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 5/32 inch (17 x 44 x 4 mm)

2шт.

Выбрано товаров: 13
