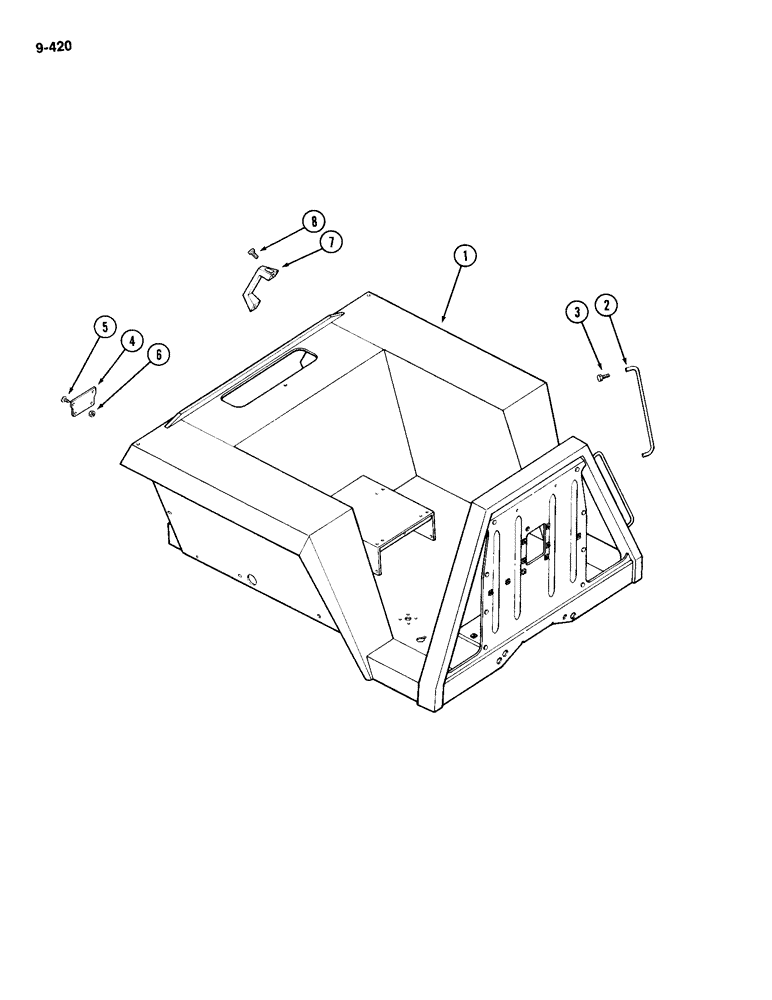

Запчасти Case IH 2094 (9-420) - PLATFORM AND FENDERS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

F98344

FRAME

PLATFORM AND FENDER - welded assembly (Replaces F98271)

1шт.

2

A143834

HANDLE

- mounting

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

(Order 113-103 and 195-521) Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

4

A149306

COVER

- rear, fuel tank water trap

1шт.

5

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10-24 x 1/2 inch

4шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, No. 10-24

4шт.

7

F64547

HANDLE

- rear fender

2шт.

8

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch

4шт.
