Запчасти Case IH 2094 (9-418) - PLATFORM MOUNTS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

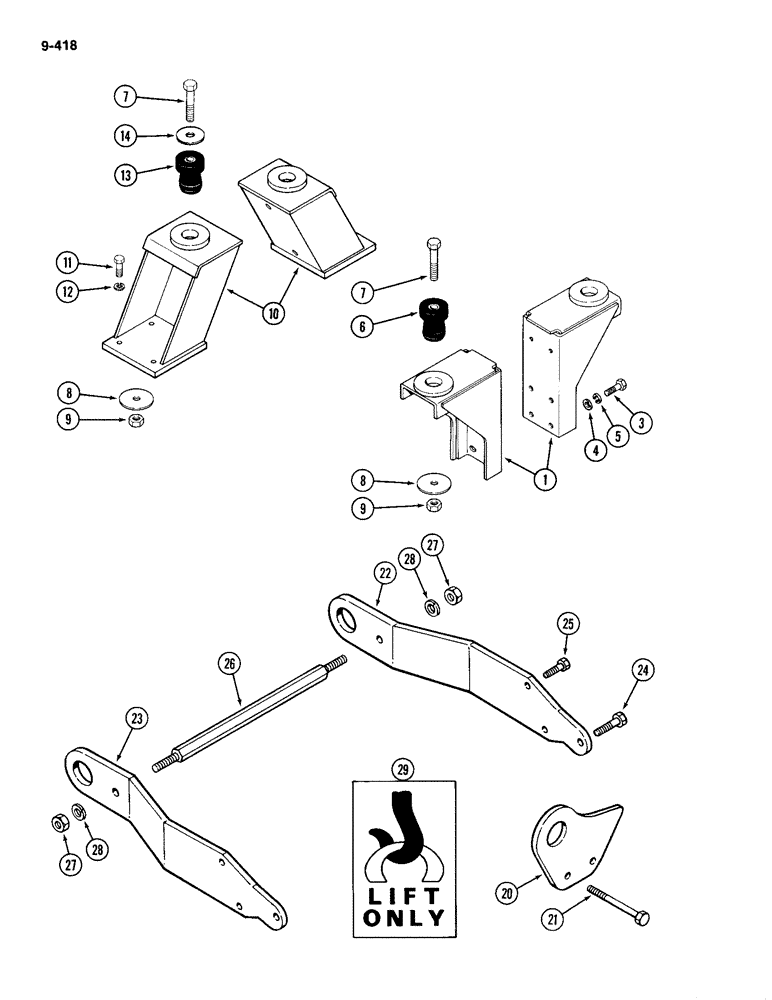

Схема запчастей Case IH 2094 - (9-418) - PLATFORM MOUNTS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
22
10
21
8
7
27
24
1
28
8
3
29
20
14
23
27
5
9
11
26
13
28
4
12
9
7
6
25

Артикул

Название

Примечание

Количество

1

A147255

BRACKET

- mounting

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

4

L30674

WASHER

- 17/32 x 1 x 1/8 inch (13 x 25 x 3 mm)

8шт.

5

92-8

LOCK WASHER,1/2"

8шт.

6

A141452

SHOCK ABSORBER

MOUNT - front, rubber (color code black)

2шт.

7

113-2636

SCREW

BOLT - hex, 5/8 NC x 4-1/4 inch

4шт.

8

A141470

WASHER

- mounting snubbing, 21/32 x 3 x 1/4 inch (17 x 76 x 6 mm)

4шт.

9

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

4шт.

10

A149667

MOUNTING PARTS

MOUNT - rear

2шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

A141451

SHOCK ABSORBER

MOUNT - rear, rubber (color code red)

2шт.

14

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 5/32 inch (17 x 44 x 4 mm)

2шт.

20

A154852

BOLT

EYE - lift, front axle

2шт.

21

113-817

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

- hex, 7/8 NC x 5-1/2 inch, lift eyes

4шт.

22

A147892

BOLT

EYE - lift, left rear

1шт.

23

A147893

BOLT

EYE - lift, right rear

1шт.

24

26-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

- hex, 1 NC x 3-1/4 inch (Grade 8) (to transmission case), lift eyes

2шт.

25

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8) (to PTO housing), lift eyes

4шт.

26

A141589

BRACKET

BAR - stabilizer, lift eyes

2шт.

27

129-110

NUT,1"-8, G5

Lift eyes 1"-8, G5

4шт.

28

192-31

LOCK WASHER,1"

WASHER, LOCK, , Lift eyes 1"

4шт.

29

321-3578

DECAL

- lift only, eyes

4шт.

Выбрано товаров: 23
