Запчасти Case IH 2094 (9-414) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

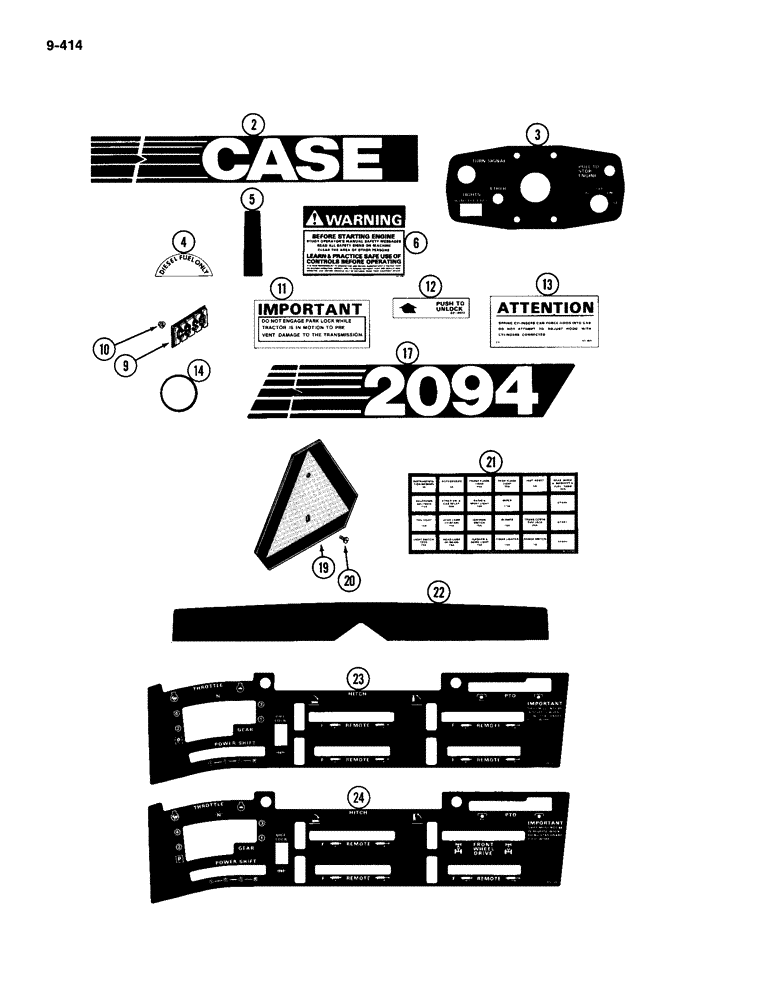

Схема запчастей Case IH 2094 - (9-414) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS
22
19
20
3
12
6
9
14
4
2
11
10
5
21
17
24
13
23

Артикул

Название

Примечание

Количество

A67552

DECAL

KIT - tractor decal, Includes: Refs. 2 - 14

1шт.

2

A167963

DECAL

- Case stripe, right

1шт.

2

A167964

DECAL

- Case stripe, left

1шт.

3

A167975

DECAL

- control panel

1шт.

4

321-4493

DECAL

- diesel fuel

1шт.

5

321-4142

DECAL

- sight line (on hood)

1шт.

6

321-3705

DECAL

- starting instuctions

1шт.

9

321-4739

EMBLEM

MEDALLION - Case trade mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - medallion retaining, self tapping, 1/4 inch

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

321-4622

DECAL

- hood unlatch

1шт.

13

321-4621

DECAL

- tilt hood adjust

2шт.

14

A167962

DISC

PLATE - flasher insert (If equipped)

1шт.

17

A167965

DECAL

- 2094 model no., right

1шт.

17

A167966

DECAL

- 2094 model no., left

1шт.

19

A163604

DECAL

EMBLEM - SMV (Order D123347)

2шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4 NC x 3/8 inch

2шт.

21

A177790

DECAL

- fuse location (Replaces A165867)

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD tractor)

1шт.

A46520

DECAL

KIT - decal, French language, Includes: Refs. 4, 6, 11 - 13 and Decal's below

1шт.

Kit also includes items listed on Figure 9-416.

1шт.

4

321-5793

DECAL

- diesel fuel, French language

1шт.

6

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock engagement, French language

1шт.

12

321-5625

DECAL

- tilt hood adjust, French language

2шт.

13

321-5624

DECAL - tilt hood adjust, French language

2шт.

321-6206

DECAL - steering console (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5627

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed chart (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover) (Replaces A169143), French language

1шт.

Выбрано товаров: 34
