Запчасти Case IH 2094 (9-408) - VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

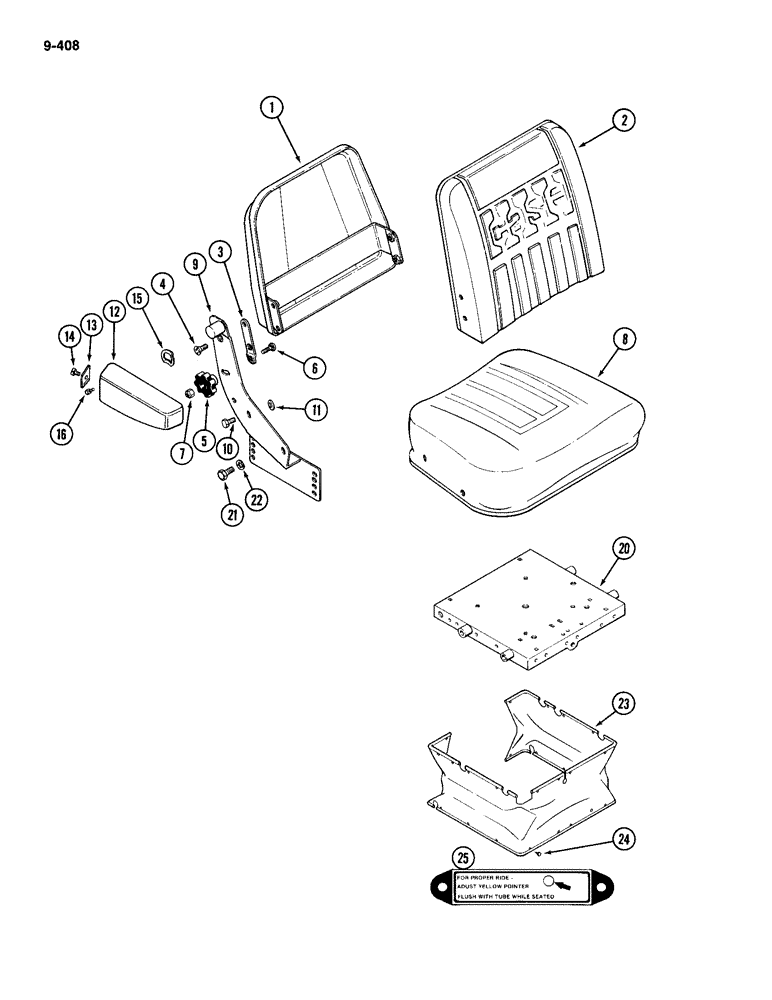

Схема запчастей Case IH 2094 - (9-408) - VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS
2
6
20
24
5
21
16
22
7
1
25
23
4
15
11
3
8
10
14
13
12
9

Артикул

Название

Примечание

Количество

A177457

SEAT

SUSPENSION ASSEMBLY - vinyl (without swivel), Includes: Refs. 1 - 25 and backrest assembly, P/N A49655

1шт.

A49655

BACKREST

ASSEMBLY - cushion, Includes: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest (Order A49655)

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest (Order A49655)

1шт.

3

A48343

LINK

- tilt, backrest

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- flat Phillips, 3/8 NC x 1 inch

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- retaining, link

2шт.

7

131-206

NUT,3/8"-16

NUT - hex jam, 3/8 inch NC

2шт.

8

A45570

CUSHION

SEAT - cushion

1шт.

9

A49656

SUPPORT

BRACKET - right side (Shown)

1шт.

9

A49657

SUPPORT

BRACKET - left side

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/2 inch

4шт.

11

A45116

WASHER

SPACER - cushion

4шт.

12

A45489

ARMREST

- right (Shown)

1шт.

12

A45488

ARMREST

- left

1шт.

13

A45584

COVER

PLATE - right armrest (Shown)

1шт.

13

A45583

PLATE

COVER PLATE - left armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, No. 10 x 5/8 inch NC

1шт.

15

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

16

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

20

A46726

HOUSING

PLATE - upper housing

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 1/2 inch

4шт.

23

A45576

BOOT

COVER - suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch

24шт.

25

A47778

DECAL

- instruction

1шт.

Выбрано товаров: 27
