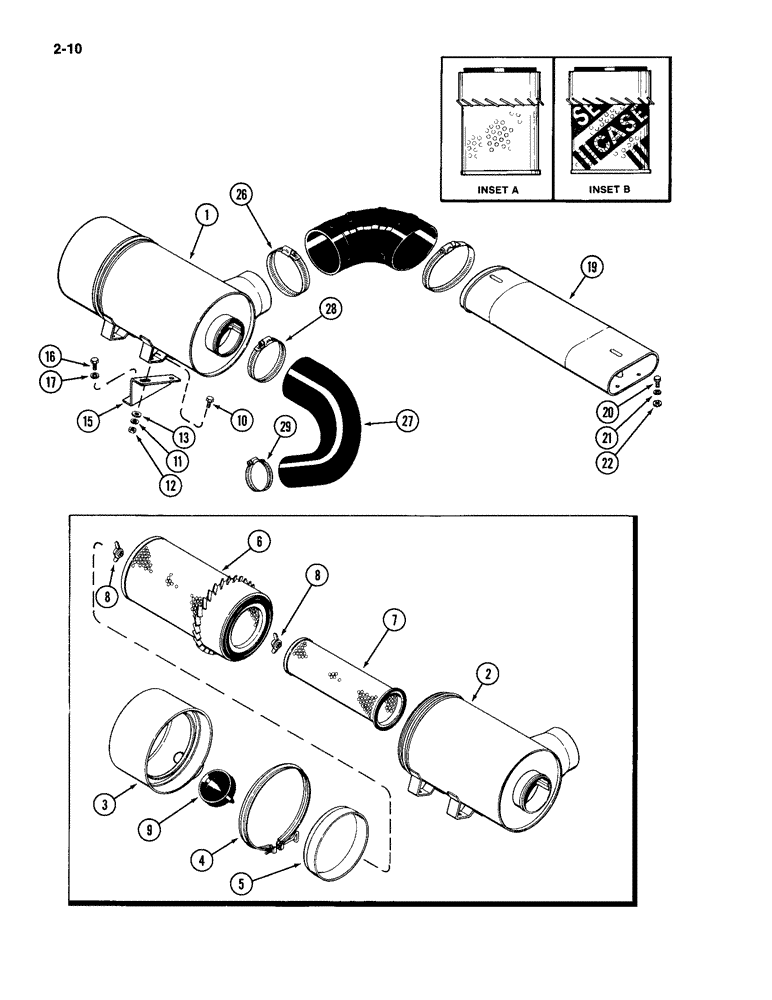

Запчасти Case IH 2094 (2-10) - AIR INDUCTION SYSTEM, 504BD DIESEL ENGINE (02) - ENGINE

1

A145870

CLEANER

AIR CLEANER ASSEMBLY, Includes: Refs. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Referenc No. A47060)

1шт.

3

A47061

CUP

- air cleaner

1шт.

4

NLS

NO LONGER SERVICED

CLAMP ASSEMBLY - air cleaner

1шт.

5

A47059

BAFFLE

- air cleaner

1шт.

6

A47032

AIR FILTER

ELEMENT - primary (See Inset A)

1шт.

6

A171838

FILTER, ELEMENT

ELEMENT - primary (See Inset B)

1шт.

7

A47033

AIR FILTER

ELEMENT - safety

1шт.

8

D78354

WING NUT

NUT - element

2шт.

9

L30414

VALVE

- exhaust

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

4шт.

13

195-520

WASHER,1/4"

- 5/16 x 7/8 x 1/16 inch (8 x 22 x 2 mm)

4шт.

15

A59209

BRACKET

- air cleaner mounting

2шт.

16

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

A147748

TUBE

- intake

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

24

A145059

HOSE

- tube to air cleaner

1шт.

25

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - hose to tube, 5-3/8 to 6-1/4 inch (137 to 159 mm)

1шт.

26

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - hose to air cleaner, 4-5/16 to 5-1/4 inch (110 to 133 mm)

1шт.

27

A67340

HOSE

- air, Serial Range: cleaner-mainfold

1шт.

28

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose to air cleaner, 4 to 5 inch (102 to 127 mm)

1шт.

29

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose to manifold, 2-13/16 to 3-3/4 inch (71 to 95 mm)

1шт.
