Запчасти Case IH 2094 (9-404) - SEAT BELT, VINYL SEAT (09) - CHASSIS/ATTACHMENTS

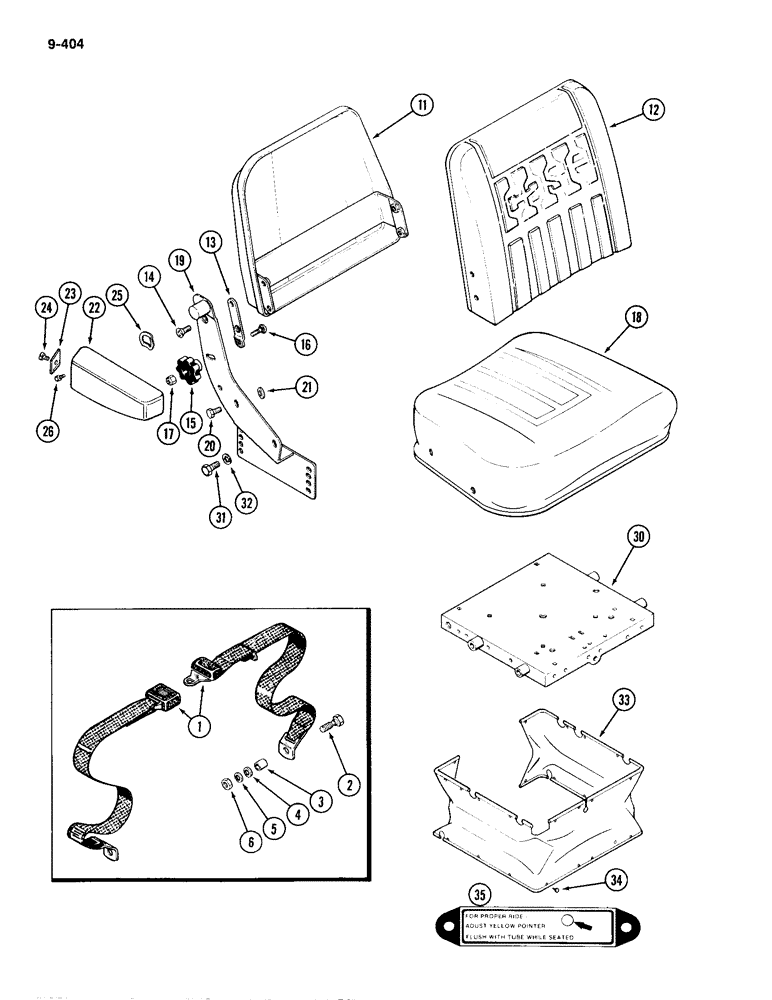

Схема запчастей Case IH 2094 - (9-404) - SEAT BELT, VINYL SEAT (09) - CHASSIS/ATTACHMENTS
15
23
6
19
17
35
31
20
24
13
22
25
4
33
1
26
21
14
34
18
30
16
5
3
2
11
32
12

Артикул

Название

Примечание

Количество

1

A160404

SAFETY BELT

BELT - seat safety

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER - bolt

2шт.

4

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

2шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC

2шт.

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl without swivel (Order A177457), Includes: Refs. 11 - 35 and backrest assembly, P/N A45571

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion, vinyl seat without swivel, Includes: Refs. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

PAN - backrest, vinyl seat without swivel

1шт.

12

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest, vinyl seat without swivel

1шт.

13

A47342

LINK

- tilt, backrest, vinyl seat without swivel

2шт.

14

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head Phillips, 3/8 NC x 1 inch, vinyl seat without swivel

2шт.

15

A45487

BUTTON

KNOB - tilt, backrest, vinyl seat without swivel

2шт.

16

A45527

CARRIAGE BOLT

- right carriage, 3/8 NC x 1-1/2 inch, vinyl seat without swivel

2шт.

17

131-206

NUT,3/8"-16

NUT - hex jam, 3/8 inch NC, vinyl seat without swivel

2шт.

18

A45570

CUSHION

SEAT - cushion, vinyl seat without swivel

1шт.

19

A45579

BRACKET

- right side (Shown), vinyl seat without swivel

1шт.

19

A45580

BRACKET

- left side, vinyl seat without swivel

1шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/2 inch, vinyl seat without swivel

2шт.

21

A45519

WASHER

SPACER - cushion (Order A45110 and A45116), vinyl seat without swivel

12шт.

22

A45489

ARMREST

- right (Shown), vinyl seat without swivel

1шт.

22

A45488

ARMREST

- left, vinyl seat without swivel

1шт.

23

A45584

COVER

PLATE - right armrest (Shown), vinyl seat without swivel

1шт.

23

A45483

WASHER

COVER PLATE - left armrest, vinyl seat without swivel

1шт.

24

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self tapping, No. NC x 5/8 inch, vinyl seat without swivel

1шт.

25

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, , vinyl seat without swivel 1 1/8"

2шт.

26

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - hex socket head, No. 10 NC x 1/2 inch, vinyl seat without swivel

2шт.

30

A45577

PLATE

- upper housing, vinyl seat without swivel

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Vinyl seat without swivel Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

32

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Vinyl seat without swivel Int Tooth, 1/2"

4шт.

33

A45576

BOOT

COVER - suspension, vinyl seat without swivel

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch, vinyl seat without swivel

24шт.

35

321-3721

DECAL

- instruction, vinyl seat without swivel

1шт.
