Запчасти Case IH 2094 (9-400) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

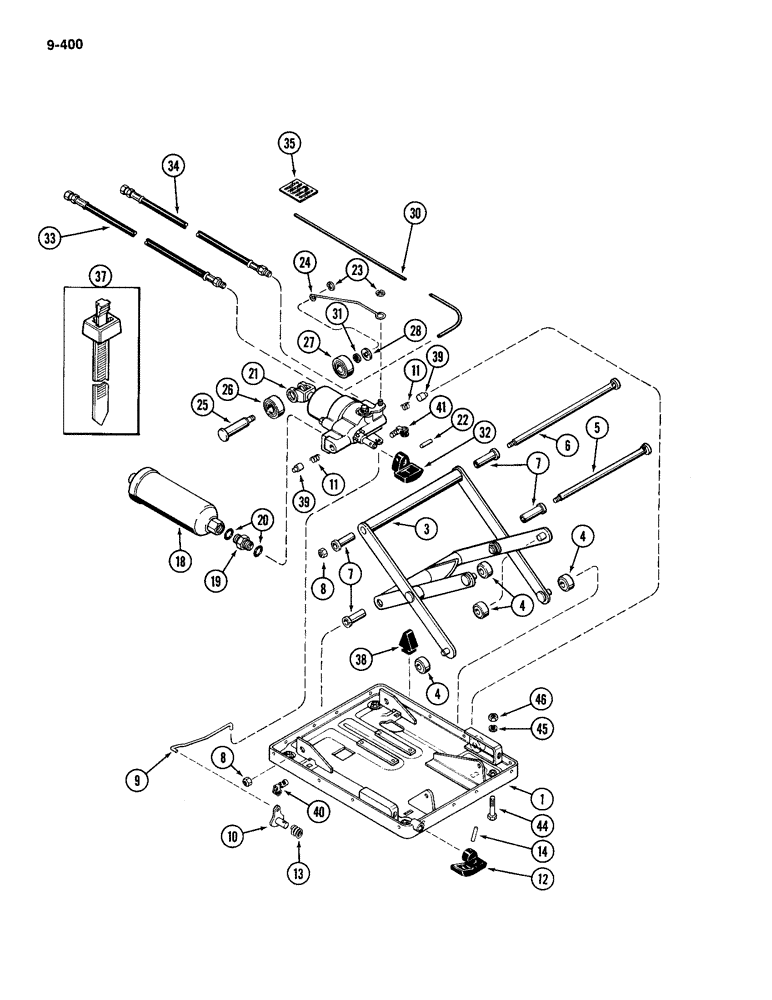

Схема запчастей Case IH 2094 - (9-400) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
6
18
4
45
1
30
34
40
28
35
25
39
9
10
22
23
8
11
4
5
7
3
26
31
44
14
27
38
4
7
13
21
20
8
39
11
12
41
33
24
32
37
46
19

Артикул

Название

Примечание

Количество

A176375

SEAT

ASSEMBLY - air/oil suspension (Continued from Figure 9-398), Includes: Refs. 1 - 41

1шт.

1

A49524

HOUSING

ASSEMBLY - suspension, lower

1шт.

3

A49526

ARM

ASSEMBLY - suspension

1шт.

4

A49527

ROLLER

- suspension

4шт.

5

A49528

SHAFT

- torque tube

1шт.

6

A49529

SHAFT

- tube, bearing

1шт.

7

A47760

BUSHING

TUBE - bearing

4шт.

8

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

9

A49532

CABLE

CONTROL WIRE - suspension

1шт.

10

A49535

LEVER

CONTROL ASSEMBLY - adjustment, height

1шт.

11

A49537

SPRING

- control

2шт.

12

A49536

HANDLE

- adjustment, height

1шт.

13

A49538

SPRING

- control

1шт.

14

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

NLS

NO LONGER SERVICED

MODULE ASSEMBLY - hydraulic, final, Includes: Refs, 18 - 35

1шт.

18

A49617

ACCUMULATOR

- module

1шт.

19

A49620

FITTING

CONNECTOR ASSEMBLY - straight, Includes: Ref. 20

1шт.

21

A49610

CYLINDER

ASSEMBLY - module, See Figure 9-402

1шт.

22

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

23

A49623

RING, SNAP

RING - retaining

2шт.

24

A49615

ROD

- linkage, valve

1шт.

25

A49613

SHAFT

- cam roller

1шт.

26

A49614

ROLLER BEARING,17 mm ID x 44.48 mm OD x 12 mm

BEARING - roller

2шт.

27

A49616

NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W

BEARING - follower, cam

1шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

30

A49609

HOSE,0.38" ID x 39.00"

- Drain (Order A167912)

1шт.

31

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 25/64 x 5/8 x 1/16 inch (10 x 16 x 2 mm)

1шт.

32

A49550

KNOB

- damper valve

1шт.

33

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat

1шт.

34

A176632

HOSE ASSY.

HOSE - return, seat

1шт.

35

A49621

DECAL

LABEL - supply, pressure

1шт.

37

R38237

STRAP

- retaining, hose

1шт.

38

A49530

INSULATOR BLOCK

BUMPER - suspension

2шт.

39

A49531

PIN

- trunnion

2шт.

40

A49533

HOSE

CLIP - retaining, left

1шт.

41

A49534

CLIP

- retaining, right

1шт.

44

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

46

131-205

LOCK NUT,5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

2шт.
