Запчасти Case IH 2094 (9-394) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

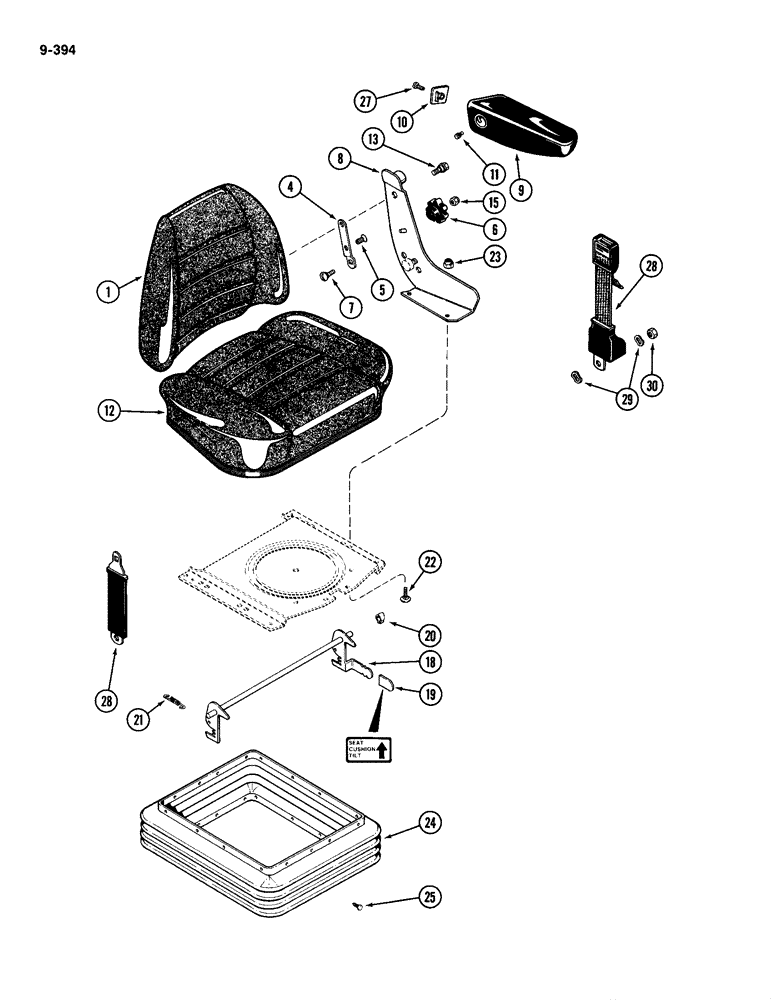

Схема запчастей Case IH 2094 - (9-394) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
22
23
29
8
6
5
15
18
10
9
12
19
4
7
11
1
25
28
28
30
13
20
21
27
24

Артикул

Название

Примечание

Количество

A176375

SEAT

ASSEMBLY - air/oil suspension, Includes: Refs. 1 - 30 and backrest assembly, P/N A49521

1шт.

A49521

BACKREST

ASSEMBLY - seat

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A49521)

1шт.

4

A48343

LINK

- backrest tilt

2шт.

5

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - backrest tilt

2шт.

7

A45527

CARRIAGE BOLT

- tilt knob

2шт.

8

A49517

BRACKET

- armrest, right

1шт.

8

A49516

BRACKET

- armrest, left

1шт.

9

A49515

ARMREST

- seat, right

1шт.

9

A49514

ARMREST

- seat, left

1шт.

10

A45584

COVER

PLATE - cover, right

1шт.

10

A45583

PLATE

- cover, left

1шт.

11

A49522

SCREW

- armrest (Order A45572)

1шт.

12

A49520

CUSHION

- seat

1шт.

13

A48346

BOLT

- back tilt

2шт.

13

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - seat tilt

2шт.

15

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

18

A49518

LEVER

TILT ASSEMBLY - seat

1шт.

19

A47347

CAP

- tilt, seat

1шт.

20

A49519

SPACER

- lever, tilt

2шт.

21

NLS

NO LONGER SERVICED

- tension, tilt lever

2шт.

22

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

23

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

24

A49618

BOOT

- seat

1шт.

25

A49658

FASTENER

- boot

28шт.

27

187-835

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, No. 10-16 x 5/8 inch

2шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

- wave

4шт.

30

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

2шт.

Выбрано товаров: 30
