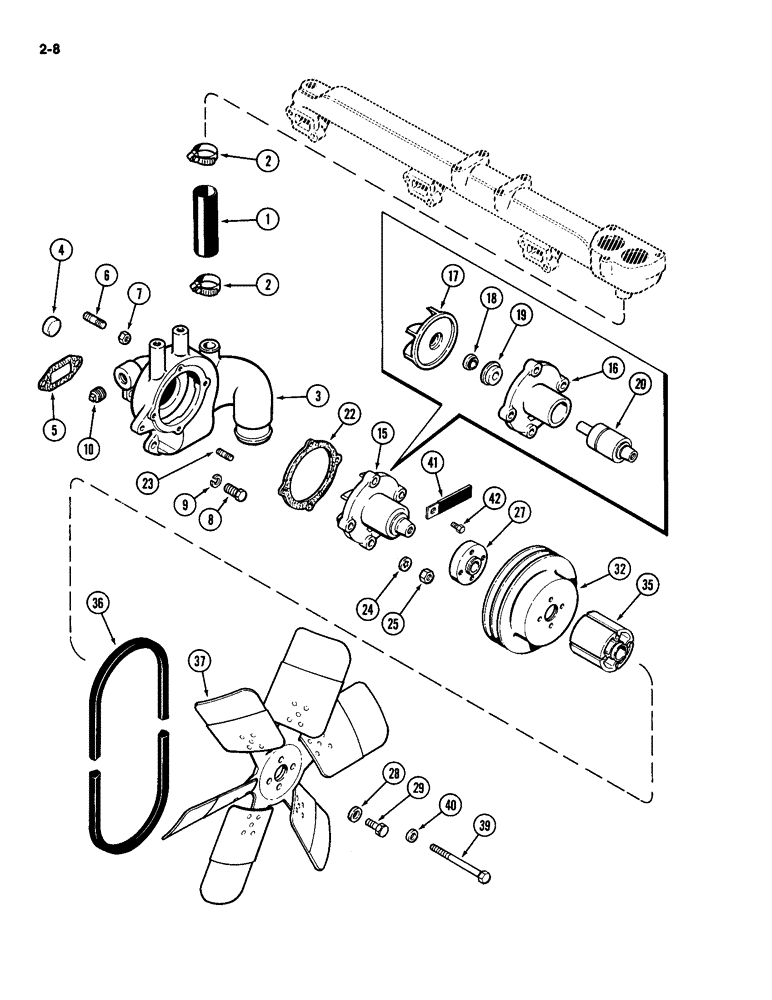

Запчасти Case IH 2094 (2-08) - WATER PUMP, 504BD DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58737
HOSE,30.99mm ID x 134.62mm L, SAE 20R4
- water pump bypass
1шт.
2
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)
2шт.
3
A148968
HOUSING
BODY ASSEMBLY - water pump, Includes: Ref. 4
1шт.
4
A58568
PLUG,Cup, 1 3/8", Stainless
- 1-3/8 inch cup (35 mm)
1шт.
5
A58649
GASKET
-, Serial Range: body-block
1шт.
6
G102128
BOLT
- 3/8 NC x 1-1/2 inch
2шт.
7
25-106
NUT,3/8"-16, G5
- hex, 3/8 inch NC
2шт.
8
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
9
92-6
LOCK WASHER,3/8"
4шт.
10
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - 1/2 inch PT, square head
1шт.
15
A157143
PUMP
ASSEMBLY - water, Includes: Refs. 16 - 20
1шт.
16
NSS
NOT SOLD SEPARAT
HOUSING - pump (Order A157143) (Reference No. A58642)
1шт.
17
A61267
IMPELLER
- water (cast iron)
1шт.
18
A34000
SEAL
SEAT - impeller
1шт.
19
A142499
SEAL
- pump shaft
1шт.
20
A156995
BEARING
SHAFT ASSEMBLY - with bearing
1шт.
22
A58646
GASKET
-, Serial Range: pump-body
1шт.
23
A166044
STUD
- 3/8 NC x 1-7/16 inch
4шт.
24
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
25
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
27
A146221
HUB
- fan and, Serial Range: pulley-pump
1шт.
28
A155047
RING,13.08mm ID x 26.92mm OD x 8.69mm Thk
WASHER - 33/64 x 1-1/16 x 11/32 inch (13 x 27 x 9 mm)
1шт.
29
114-400
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
1шт.
32
A146982
PULLEY
1шт.
35
A161678
BUSHING
SPACER - fan blade, 3-1/8 inch wide (79 mm)
1шт.
36
A145325
SET OF BELTS,60.00" L
SET OF 2 BELTS , Fan, Matched 60.00" L
1шт.
36
A57130
BELT,60.00" L
Fan, Single without Air Conditioning 60.00" L
1шт.
37
A164663
FAN
- 22 inch (556 mm)
1шт.
39
113-240
BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5
- hex, 3/8 NC x 4-1/2 inch
4шт.
40
A50820
WASHER
- hardened, 25/64 x 3/4 x 7/64 inch (10 x 19 x 3 mm)
4шт.
41
A149624
CLIP
1шт.
Выбрано товаров: 32
