Запчасти Case IH 2094 (9-382) - UPPER GRILLE, HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS

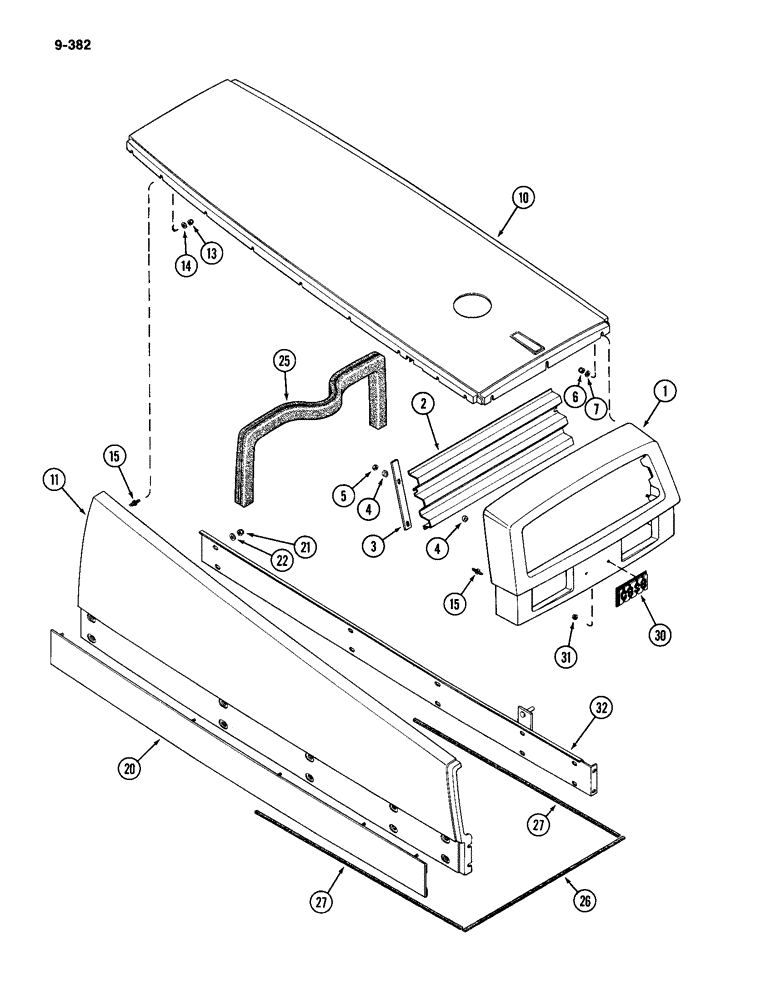

Схема запчастей Case IH 2094 - (9-382) - UPPER GRILLE, HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS
10
21
2
5
20
14
7
1
32
4
22
27
3
26
11
15
25
31
15
6
13
27
30
4

Артикул

Название

Примечание

Количество

1

A145887

GUARD

GRILLE ASSEMBLY - upper (Includes 11 studs) (See Ref. 15)

1шт.

2

A162560

SCREEN

- upper grille

1шт.

3

A147667

BRACKET

- grille screen

2шт.

4

A147030

SPACER

- grille screen

8шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, (Grille to hood) 1/4"-20, GA

3шт.

7

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

10

A145886

HOOD

- upper

1шт.

11

A145622

PANEL

ASSEMBLY - hood, left side (Includes 9 studs) (See Ref. 15)

1шт.

11

A145623

PANEL

ASSEMBLY - hood, right side (Includes 9 studs) (See Ref. 15) (Shown)

1шт.

13

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

18шт.

14

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

18шт.

15

A160247

STUD

- hood mounting, 1/4 inch NC

29шт.

20

A145688

PANEL

- decal

2шт.

21

131-205

LOCK NUT,5/16"-18

NUT - hex jam lock, 5/16 inch NC

20шт.

22

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

20шт.

25

A149229

PLATE

SEAL - hood and panels

1шт.

26

A162383

SEAL

SEAL - hood to grille (Order A162397 and cut to required length)

1шт.

A162397

SEAL

- adhesive sided, 50 feet (15 m)

1шт.

27

A162381

STRIP

SEAL - hood to side panel (Order A162398 and cut to required length)

2шт.

A162398

SEAL

- adhesive side, 50 feet (15 m)

1шт.

30

321-4739

EMBLEM

- grille, Case mark

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch

2шт.

32

A145989

FRAME

- hood, left

1шт.

32

A145988

FRAME

- hood, right (shown)

1шт.

Выбрано товаров: 25
