Запчасти Case IH 2094 (9-378) - HOOD LATCH KIT, TRACTORS WITH LOADER (09) - CHASSIS/ATTACHMENTS

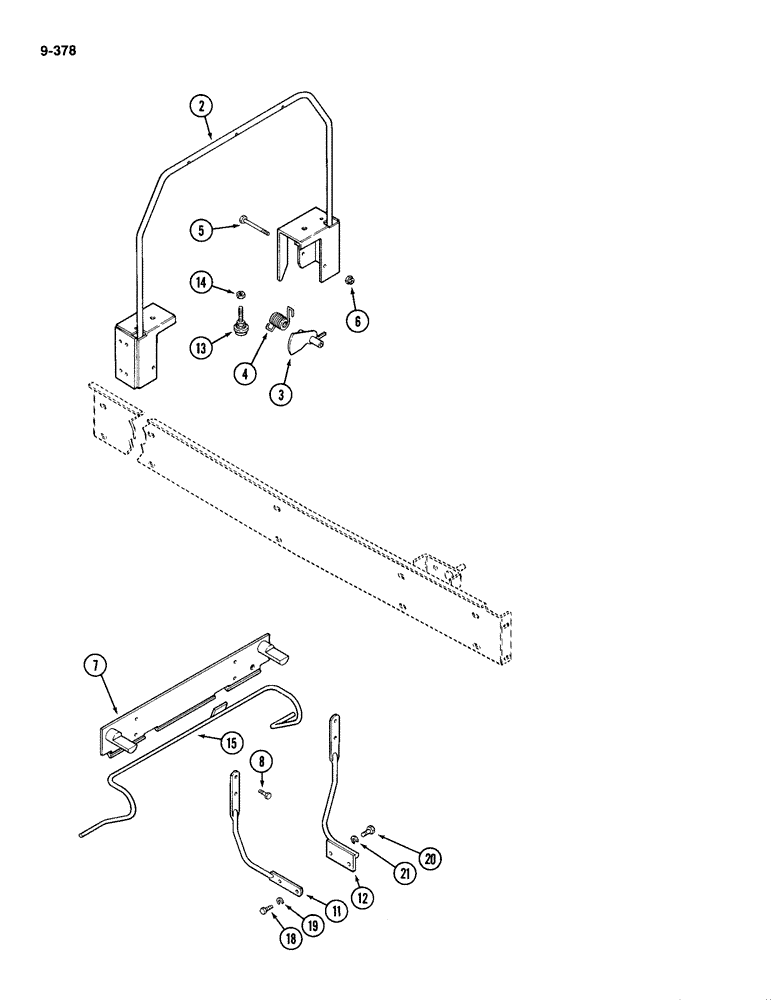

Схема запчастей Case IH 2094 - (9-378) - HOOD LATCH KIT, TRACTORS WITH LOADER (09) - CHASSIS/ATTACHMENTS
4
15
5
7
2
3
13
18
8
21
11
19
14
12
6
20

Артикул

Название

Примечание

Количество

A67592

KIT - hood latch (Machinery Item), Includes: Refs. 2 - 15

1шт.

2

A147212

BRACE

- hood support, rear

1шт.

3

A147728

TRIGGER

- hood lock

2шт.

4

A147730

SPRING

- hood lock torsion

2шт.

5

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

A147221

SUPPORT

- rear hood

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

11

A147218

BRACE

ROD - hood support, right rear

1шт.

12

A162749

ROD

- hood support, left rear

1шт.

13

A145178

WAD

BUMPER - hood rest

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A147749

HANDLE

- hood lock release

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 17
