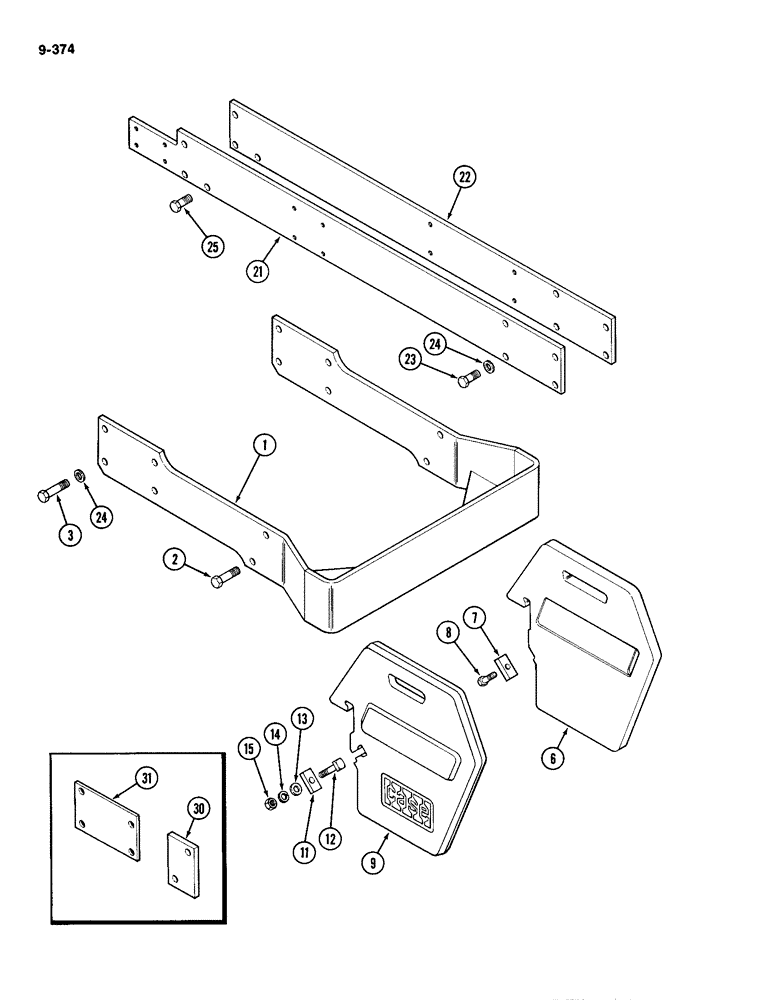

Запчасти Case IH 2094 (9-374) - WEIGHT SUPPORT FRAME AND SIDE RAILS (09) - CHASSIS/ATTACHMENTS

A67515

FRAME ATTACHMENT - support front end weight (Machinery Item), Includes: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - support, 24-1/4 inch (616 mm) inside width (Reference No. A180014)

1шт.

A67546

KIT - weight frame hardware (Machinery Item)

1шт.

2

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8), front of frame

4шт.

3

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, rear frame

8шт.

A67373

WEIGHT

ATTACHMENT - front end (Machinery Item), Includes: Refs. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

WEIGHT - 75 pounds (35 kg) (Order A67373)

1шт.

7

A145919

CLAMP

- weight

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

A169111

WEIGHT

- front end, 100 pounds (45 kg) (Machinery Item)

1шт.

A177102

KIT

- hardware attaching (Machinery Item), Includes: Refs. 11 - 15

1шт.

11

A145919

CLAMP

- weight

1шт.

12

A169139

SQUARE BOLT

- square head

1шт.

(1/2 x 3 1/4")

1шт.

13

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 7/64") (13 x 27 x 3 mm) 1/2", SAE

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

21

A162584

RAIL

- side, right, 60-17/32 inch (1537 mm)

1шт.

22

A164049

RAIL ASSY.

RAIL - side, left, 53-35/64 inch (1360 mm)

1шт.

23

118-713

BOLT - hex, 3/4 NC x 1-3/4 inch, used without weight support frame

8шт.

24

A26462

WASHER

- hardened, 49/64 x 1-1/4 x 5/64 inch (20 x 32 x 2 mm)

8шт.

25

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

A67516

SPACER ATTACHMENT - front end support (Machinery Item), kit, Includes: Refs. 30 and 31

1шт.

30

A160542

BUSHING

SPACER - front end support frame, used on the front of the frame, kit

2шт.

31

A162012

PLATE ASSY.

SUPPORT - front and support frame, used on the rear of the frame, spacer kit

4шт.
