Запчасти Case IH 2094 (9-370) - DRAWBAR - SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

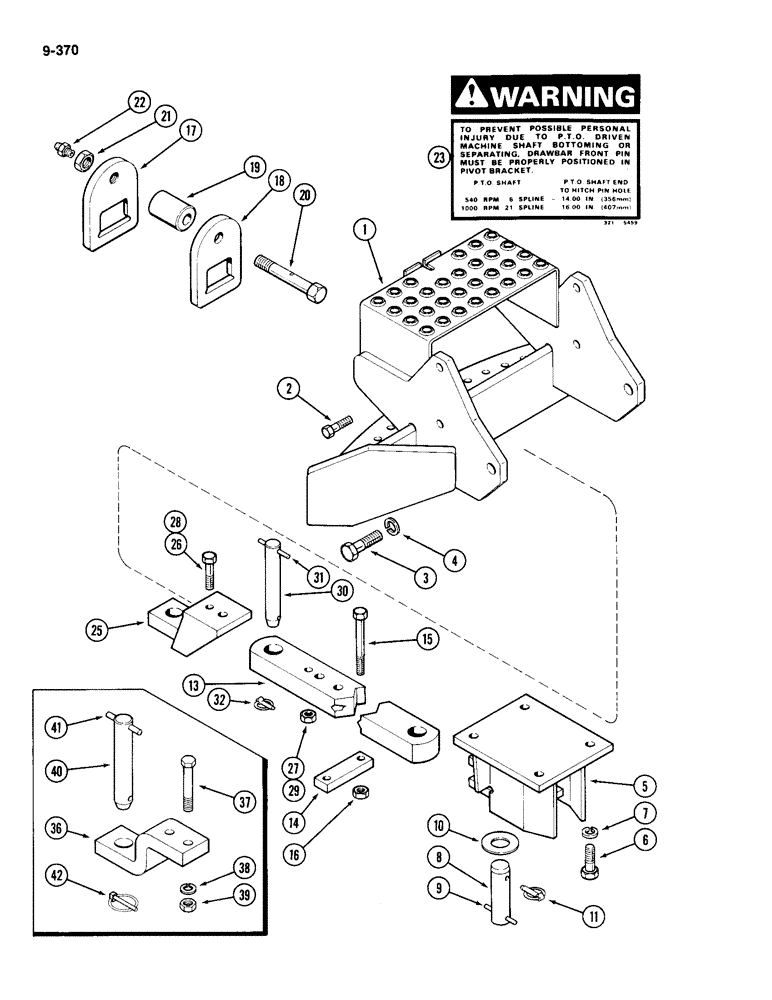

Схема запчастей Case IH 2094 - (9-370) - DRAWBAR - SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS
10
29
30
22
21
17
39
38
41
9
27
18
36
16
40
11
32
15
26
4
28
5
31
19
2
42
13
23
1
3
7
37
14
8
25
20
6

Артикул

Название

Примечание

Количество

1

A176395

BRACKET

- support, drawbar swing (Replaces A163877)

1шт.

2

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

3

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

4

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

5

A160820

BRACKET

- front support and pivot

1шт.

6

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

A160831

PIN

ASSEMBLY - pivot, Includes: Ref. 9

1шт.

9

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

10

A160830

WASHER

- pivot pin

1шт.

11

D33805

PIN

- klik

1шт.

13

A160824

DRAWBAR, SWINGING

DRAWBAR

1шт.

14

A63600

STRAP

- drawbar clamp

1шт.

15

113-653

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex, 5/8 NC x 5-3/4 inch

2шт.

16

129-107

NUT,5/8"-11, G5

2шт.

17

A135433

PLATE

BRACKET - threaded, drawbar hanger

1шт.

18

A65754

PLATE

BRACKET - drawbar hanger

1шт.

19

A135435

ROLLER

- drawbar

1шт.

20

A135434

BOLT

- roller

1шт.

21

129-110

NUT,1"-8, G5

1шт.

22

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PT

1шт.

23

321-5459

DECAL

- drawbar pin

1шт.

A67493

CLEVIS

YOKE ATTACHMENT - drawbar (Machinery Item), Includes: Refs. 25 - 32

1шт.

25

A161230

CLEVIS

YOKE - drawbar

1шт.

26

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

1шт.

27

129-138

NUT,3/4"-10, G8

1шт.

28

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 inch (Grade 8)

1шт.

29

129-183

NUT,5/8"-11, G8

1шт.

30

A65764

PIN

ASSEMBLY - implement

1шт.

31

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, 3/8" x 3 1/4", Type E

1шт.

32

A30338

PIN

- klik

1шт.

A61836

KIT

YOKE ATTACHMENT - drawbar, wideswing (Machinery Item), Includes: Refs. 36 - 42

1шт.

36

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

37

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Strap to drawbar Hex, 3/4"-10 x 4 1/2", G5

2шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

39

129-108

NUT,3/4"-10, G5

2шт.

40

A65760

PIN

ASSEMBLY - drawbar

1шт.

41

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

42

A61560

LOCK PIN

PIN - klik

1шт.

Выбрано товаров: 39
