Запчасти Case IH 2094 (9-368) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

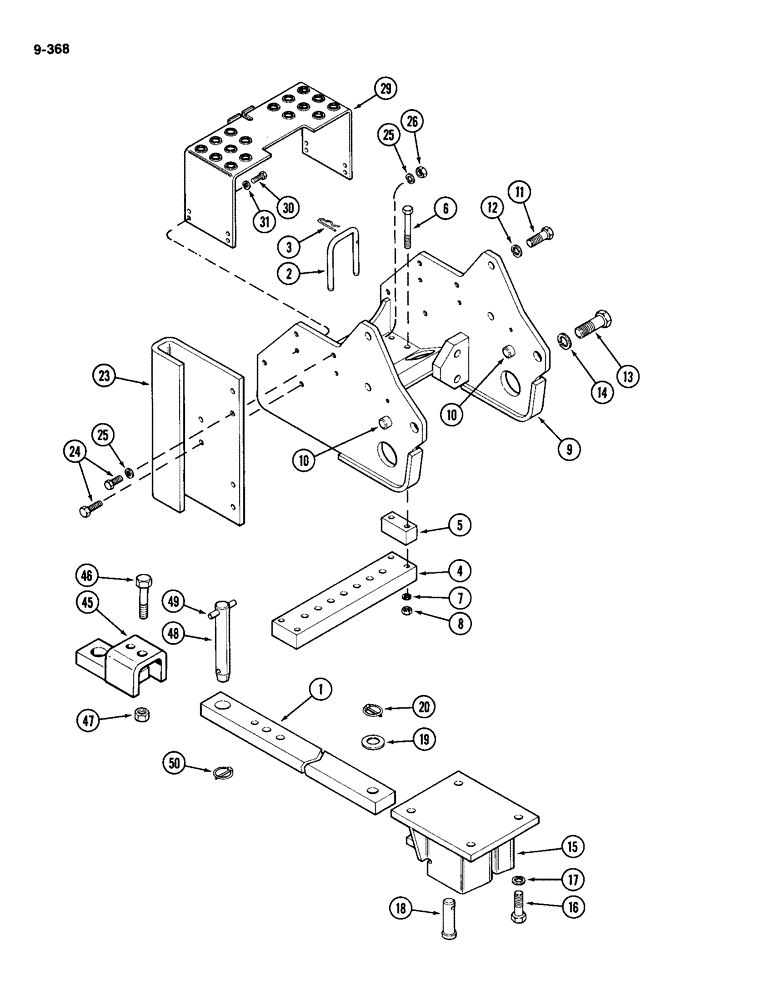

Схема запчастей Case IH 2094 - (9-368) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS
9
3
16
4
15
13
26
5
25
30
10
8
2
46
31
18
19
10
6
29
23
50
7
49
12
14
11
20
48
45
17
25
1
24
47

Артикул

Название

Примечание

Количество

1

A137939

DRAWBAR, SWINGING

DRAWBAR

1шт.

2

A135985

RETAINER

- drawbar swing

1шт.

3

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - cotter, internal hairpin type 1

1шт.

4

A135981

BAR

- support, drawbar rear

1шт.

5

A162830

SPACER

- drawbar

2шт.

6

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9

A164218

BRACKET

- support, drawbar

1шт.

10

A161440

PIN

- crossbar link

2шт.

11

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

13

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

2шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

A162815

BRACKET

- drawbar pivot

1шт.

16

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A137940

PIN,25.4mm OD x 95.25mm L

- pivot, drawbar

1шт.

19

A160059

WASHER

- pivot pin

1шт.

20

A30338

PIN

- klik

1шт.

23

A162833

BRACKET

STOP - draft arm sway

2шт.

24

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/4 inch

2шт.

24

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

29

A164215

GUARD

SHEILD - PTO

1шт.

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

A67493

CLEVIS

YOKE ATTACHMENT - drawbar (Machinery Item), Includes: Refs. 45 - 50

1шт.

45

A161230

CLEVIS

YOKE - drawbar

1шт.

46

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

1шт.

46

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch (Grade 8)

1шт.

47

129-138

NUT,3/4"-10, G8

1шт.

47

129-183

NUT,5/8"-11, G8

1шт.

48

A65764

PIN

ASSEMBLY - implement

1шт.

49

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, 3/8" x 3 1/4", Type E

1шт.

50

A30338

PIN

- klik

1шт.

Выбрано товаров: 37
