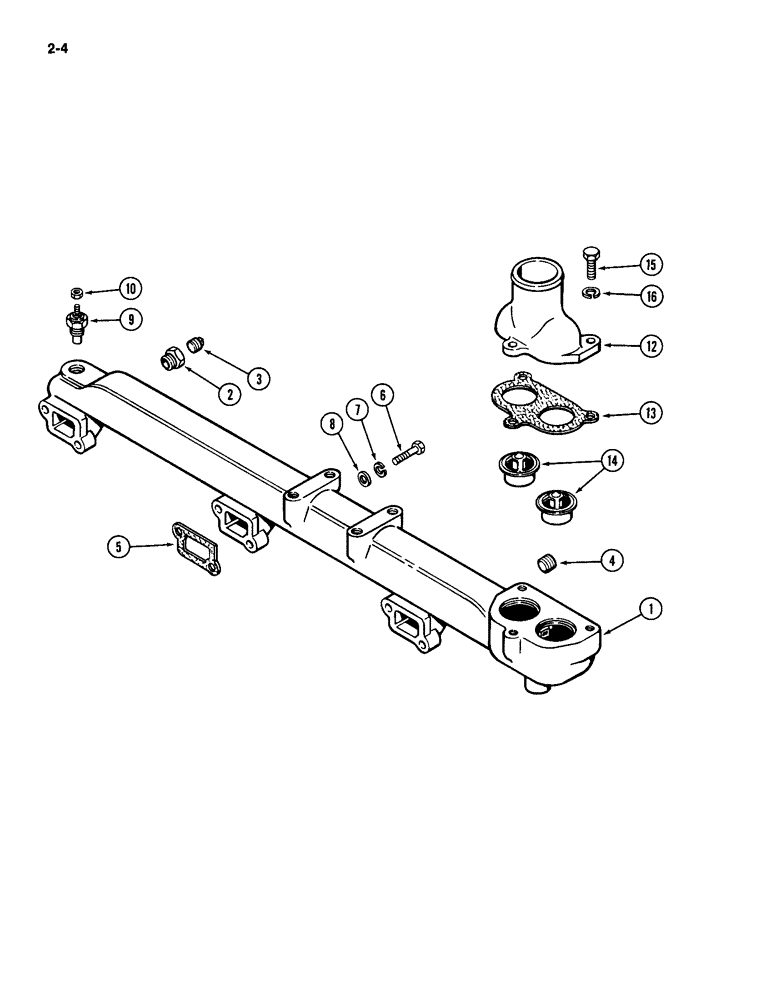

Запчасти Case IH 2094 (2-04) - WATER MANIFOLD AND THERMOSTAT, 504BD DIESEL ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8 inch PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

2шт.

5

A166147

GASKET

- manifold (Replaces A58637)

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

9

A176566

TRANSMITTER

UNIT - sender, engine temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, No. 10-32

1шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A166148

GASKET

- housing

1шт.

14

A57641

THERMOSTAT

- 180 deg.F (82deg.C)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.
