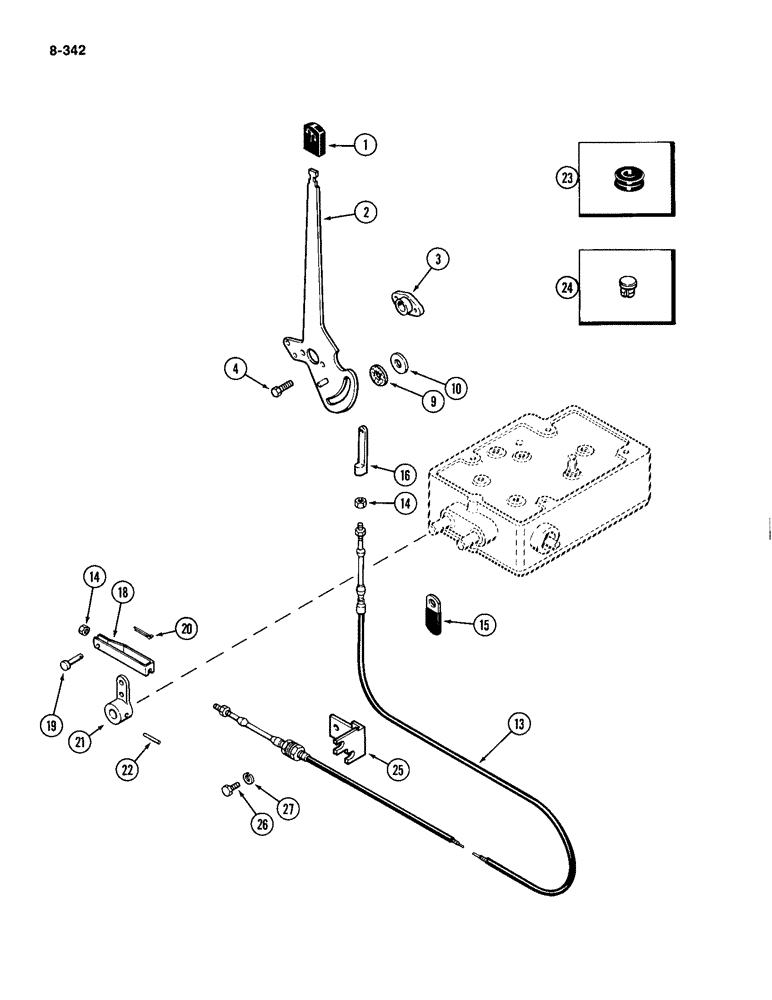

Запчасти Case IH 2094 (8-342) - DEPTH SENSING CONTROL LINKAGE (08) - HYDRAULICS

1

A163885

KNOB

- hand lever (Black)

1шт.

2

A163881

LEVER

- hand

1шт.

3

A162901

BUSHING

BEARING - lever pivot

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm) (Order 195-2035)

1шт.

13

A67299

CABLE

- control, hand lever to valve (Order A167658)

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- Keps, No. 10 NF

2шт.

15

A37179

CLIP

-, Serial Range: cable-transmission

1шт.

16

A162855

YOKE

- cable to hand lever

1шт.

18

A160819

YOKE

- cable, lower

1шт.

21

A156185

LEVER

- control valve (Replaces A63037)

1шт.

22

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

23

A145925

GROMMET

- cable

1шт.

24

A162961

PLUG

- cable, 3/4 inch diameter head (19 mm)

1шт.

25

A160811

BRACKET

- control cable

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
