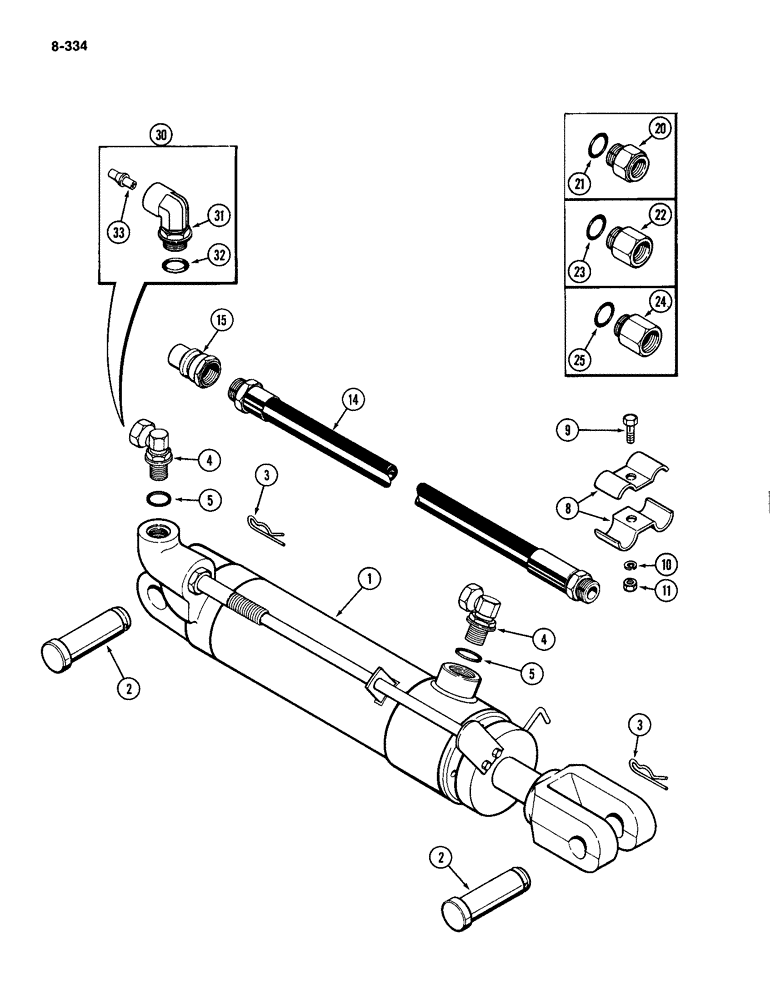

Запчасти Case IH 2094 (8-334) - REMOTE HYDRAULICS, REMOTE CYLINDER, HOSES AND COUPLINGS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, See Figure 8-338

1шт.

2

A27347

PIN

- cylinder retaining

2шт.

3

A29054

HAIR PIN COTTER

- internal hair

2шт.

4

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 90 degree, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 27/32 x 3/32 inch (19 x 21 x 2 mm)

1шт.

8

A27440

CLAMP

- hose

2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

14

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

15

REF

INSTRUCTION

COUPLING - male, See Figure 8-336

1шт.

A135687

ADAPTER

KIT - coupling (J I Case Implement hose), hydraulic hose, Includes: Refs. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - 7/8-14 inch male x 7/8-18 inch female, hydraulic hose

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 27/32 x inch (19 x 21 x 2 mm), hydraulic hose adapters

1шт.

A135688

ADAPTER

KIT - coupling (John Deere Implement hose), hydraulic hose, Includes: Refs. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - 7/8-14 inch male x 3/4-16 inch female, hydraulic hose

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 27/32 x 3/32 inch (19 x 21 x 2 mm), hydraulic hose adapters

1шт.

24

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSEMBLY - coupling, 7/8-14 inch male x 1/2 inch PT female (International Harvester Implement hoses), hydraulic hose

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 27/32 x 3/32 inch (19 x 21 x 2 mm), hydraulic hose adapters

1шт.

30

A65953

HYDRAULIC VALVE

ATTACHMENT - cylinder return flow regulator (Order A65954), Includes: Refs. 31 - 33

1шт.

31

A65955

ELBOW,90 Degree, 7/8"-14" O-Ring x 1/2" NPT Fem

ASSEMBLY - 90 degree, cylinder return flow regulator, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 27/32 x 3/32 inch (19 x 21 x 2 mm), cylinder return flow regulator

1шт.

33

A57369

SPOOL

- regulator, cylinder return flow

1шт.
