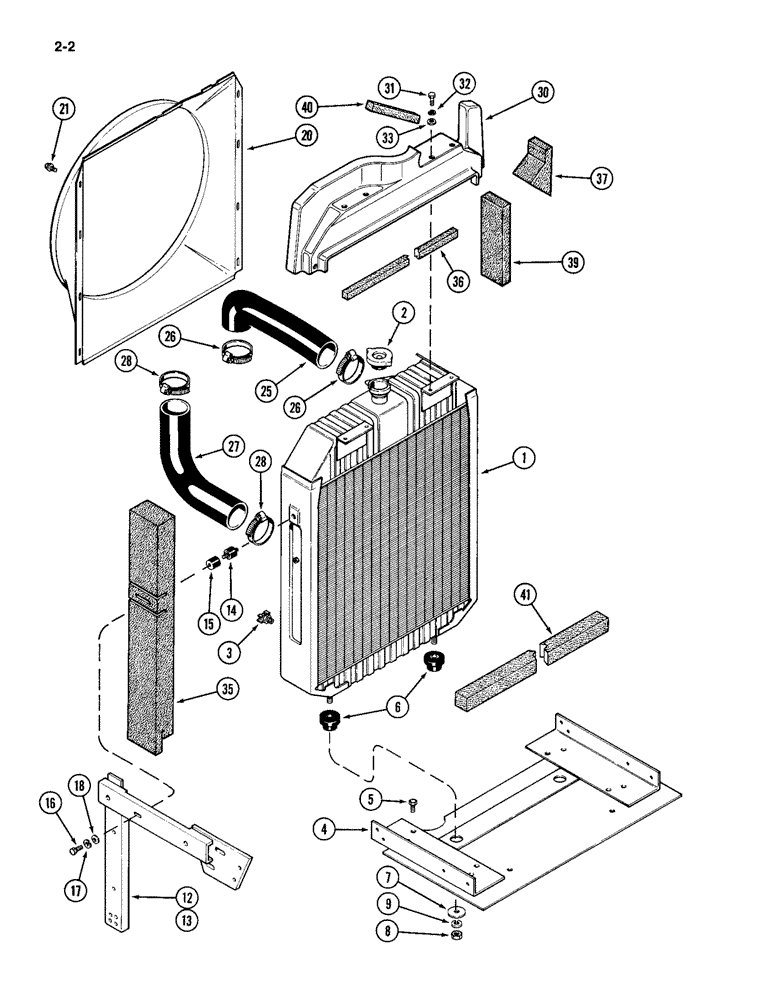

Запчасти Case IH 2094 (2-02) - RADIATOR AND ATTACHING PARTS, 504BD DIESEL ENGINE (02) - ENGINE

1

A165922

RADIATOR

- cooling system

1шт.

2

A166776

CAP

- radiator 10 PSI (68.95 kPa)

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A145859

SUPPORT

- lower radiator

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

6

L46821

SHOCK ABSORBER

MOUNT - rubber

2шт.

7

NLS

NO LONGER SERVICED

- mounting

2шт.

8

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

A169188

BRACKET

SUPPORT - left side, radiator (Replaces A145678)

1шт.

13

A169187

BRACKET

SUPPORT - right side, radiator (Replaces A145679)

1шт.

14

A145743

MOUNTING PARTS

MOUNT - rubber, radiator side

2шт.

15

A161631

SPACER

- side mount

2шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

20

A147272

GUARD

SHROUD - fan

1шт.

21

A161360

BOLT

- hex washer head, 1/4 NC x 5/8 inch (Order 1 each of 113-2, 192-19 and 195-102)

8шт.

25

A143930

RADIATOR HOSE,2.50" ID x 13.20", SAE 20R4

Upper 2.50" ID x 13.20", SAE 20R4

1шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - upper hose

2шт.

27

A143931

RADIATOR HOSE,2.62" ID x 8.75", SAE 20R4

Lower 2.62" ID x 8.75", SAE 20R4

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - lower hose

2шт.

30

A145975

BAFFLE

- upper, radiator

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4.шт.

33

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

35

A164591

SEAL

- radiator to side panel

2шт.

36

A149296

SEAL

- upper, radiator

1шт.

37

A149643

SEAL

- baffle opening (left of air intake)

1шт.

39

A149642

SEAL

- baffle opening (right of air intake)

1шт.

40

A149644

SEAL

- cooler, Serial Range: tubes-baffle

1шт.

41

A149962

SEAL

- lower, radiator

1шт.
