(8-308) - REMOTE HYDRAULICS, REMOTE ATTACHMENT - NO. 4 CIRCUIT

Запчасти Case IH 2094 (8-308) - REMOTE HYDRAULICS, REMOTE ATTACHMENT - NO. 4 CIRCUIT (08) - HYDRAULICS

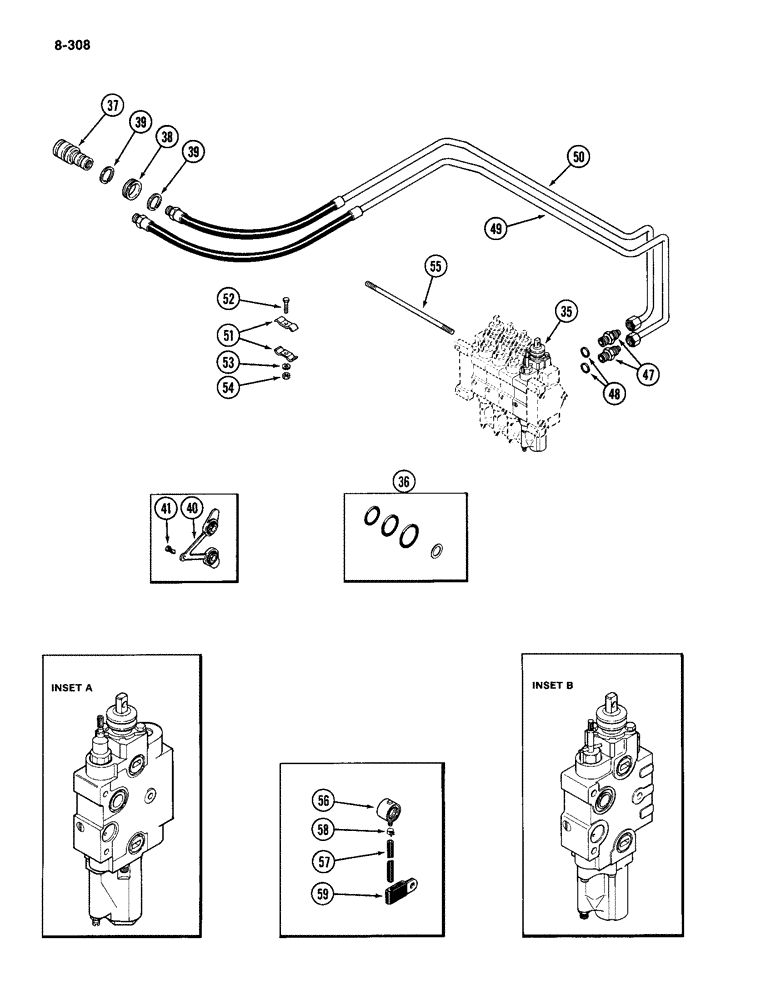

Схема запчастей Case IH 2094 - (8-308) - REMOTE HYDRAULICS, REMOTE ATTACHMENT - NO. 4 CIRCUIT (08) - HYDRAULICS
39
49
37
36
41
35
53
59
54
56
55
39
57
40
51
58
52
48
50
47
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A180263

ATTACHMENT - remote hydraulics, No. 4 circuit (Machinery Item) (Continued from Figure 8-306), Includes: Refs. 35 - 59 and 1 - 31 on fig. 8-306

1шт.

A67589

ATTACHMENT - remote hydraulic, No. 4 circuit (Machinery Item) (Continued from Figure 8-306), Includes: Refs. 35 - 59 and 1 - 31 on fig. 8-306

1шт.

A67536

ATTACHMENT - remote hydraulics, No. 4 circuit (Machinery Item) (Continued from Figure 8-306), Includes: Refs. 35 - 59 and 1 - 31 on fig. 8-306

1шт.

35

REF

INSTRUCTION

BODY - remote valve (See Inset A), See Figure 8-315

1шт.

35

REF

INSTRUCTION

BODY - remote valve (See Inset B), See Figure 8-319

1шт.

36

A47576

KIT

- seal, with shims, See figure 8-310

1шт.

37

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-336)

2шт.

38

A139805

RETAINER

- coupling

2шт.

39

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

40

A145468

PLUG

- remote coupling dust (Used with A67536 and A67589 attachment)

1шт.

41

A162364

FASTENER

- dust plug (Used with A67536 and A67589 attachment)

1шт.

47

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 48

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

49

A145907

HOSE

- No. 7 remote coupling

1шт.

50

A145908

HOSE

- No. 8 remote coupling

1шт.

51

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

52

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147508

STUD

- valve mounting, 3/8 NC x 11-3/4 inch

3шт.

56

A177479

CAP

- dust (Used with A180263 attachment)

2шт.

57

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (In A180263 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

58

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining (Used with A180263 attachment)

2шт.

59

A180154

CLAMP

- hose retaining (Used with A180263 attachment)

1шт.
