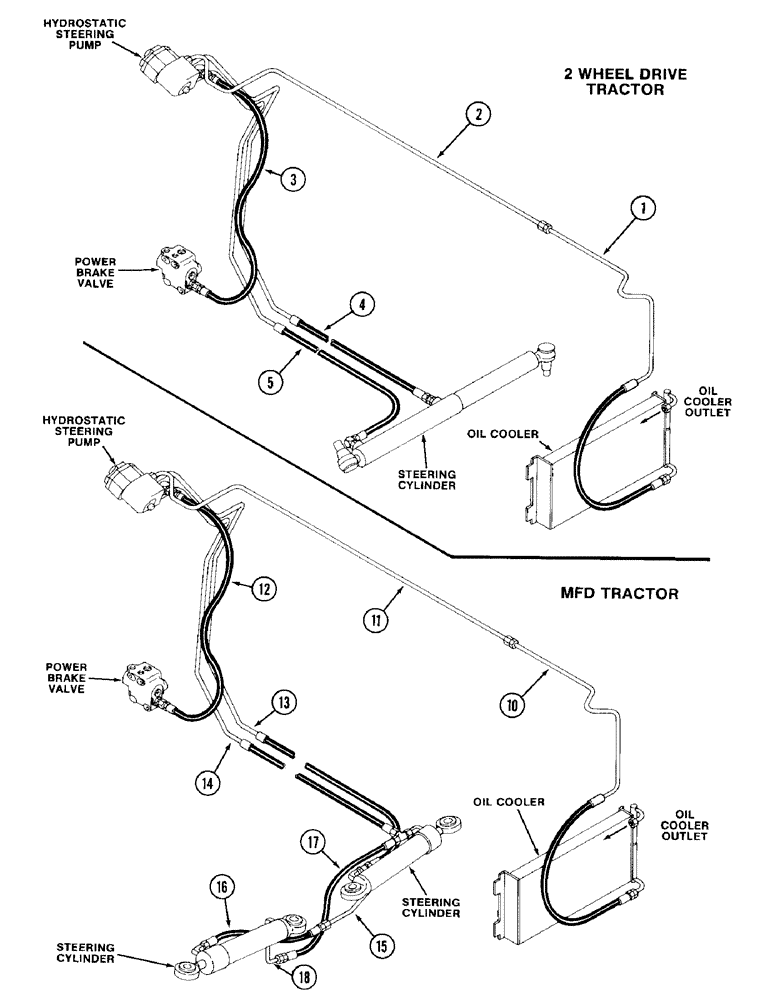

Запчасти Case IH 2094 (1-20) - PICTORIAL INDEX, STEERING HYDRAULICS, 2 WHEEL DRIVE (00) - PICTORIAL INDEX

1

Oil Cooler Inlet Hose, Page 5-119

1шт.

2

Oil Cooler to Steering Pump Tube, Page 5-119

1шт.

3

Steering Pump to Brake Valve Hose, Page 5-115

1шт.

4

Left Steering Cylinder Hose, Page 5-115

1шт.

5

Right Steering Cylinder Hose, Page 5-115

1шт.

10

Oil Cooler Inlet Hose, Page 5-119, mechanical front drive (mfd)

1шт.

11

Oil Cooler to Steering Pump Tube, Page 5-119, mechanical front drive (mfd)

1шт.

12

Steering Pump to Brake Valve Hose, Page 5-115, mechanical front drive (mfd)

1шт.

13

Left Steering Cylinder Hose, Page 5-115, mechanical front drive (mfd)

1шт.

14

Right Stering Cylinder Hose, Page 5-117, mechanical front drive (mfd)

1шт.

15

Left Steering Tube, Page 5-117, mechanical front drive (mfd)

1шт.

16

Steering Hydraulic Hose, Page 5-117, mechanical front drive (mfd)

1шт.

17

Steering Hydraulic Hose, Page 5-117, mechanical front drive (mfd)

1шт.

18

Right Steering Tube, Page 5-117, mechanical front drive (mfd)

1шт.
