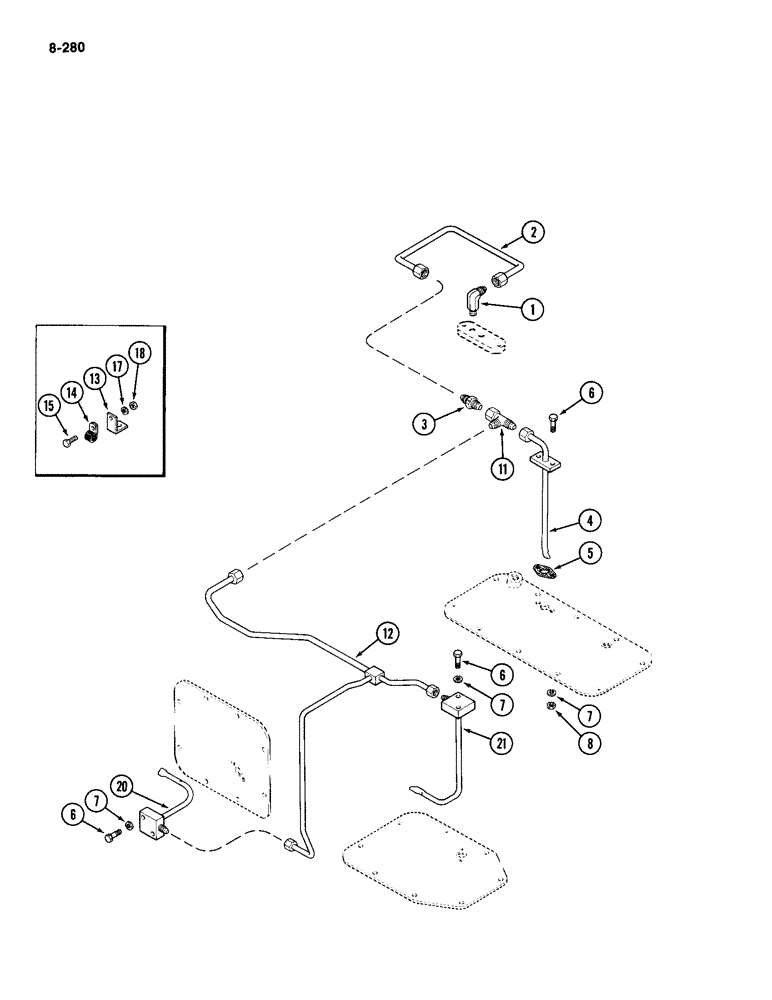

Запчасти Case IH 2094 (8-280) - TRANSMISSION LUBRICATION (08) - HYDRAULICS

1

218-1084

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-12 NPTF, XLG

- 90 degree

1шт.

2

A167843

TUBE

- spiral bevel supply

1шт.

3

A160216

FITTING

VALVE - check, lubrication tube (Replaces A167842)

1шт.

4

A165324

PIPE

TUBE - spiral bevel lubrication

1шт.

5

A38212

GASKET

- lubrication tube

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- valve to lubrication tubes 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

12

A177203

TUBE

- transmission gear lubrication

1шт.

13

A162527

BRACKET

- tube retaining clamp

2шт.

14

49838

CLAMP

- tube retaining

2шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A179070

PIPE

TUBE - second and third gear lubrication

1шт.

21

A169818

TUBE - transfer gear lubrication

1шт.
