Запчасти Case IH 2094 (7-260) - PRESSURE CONTROL VALVE, IF EQUIPPED (07) - BRAKES

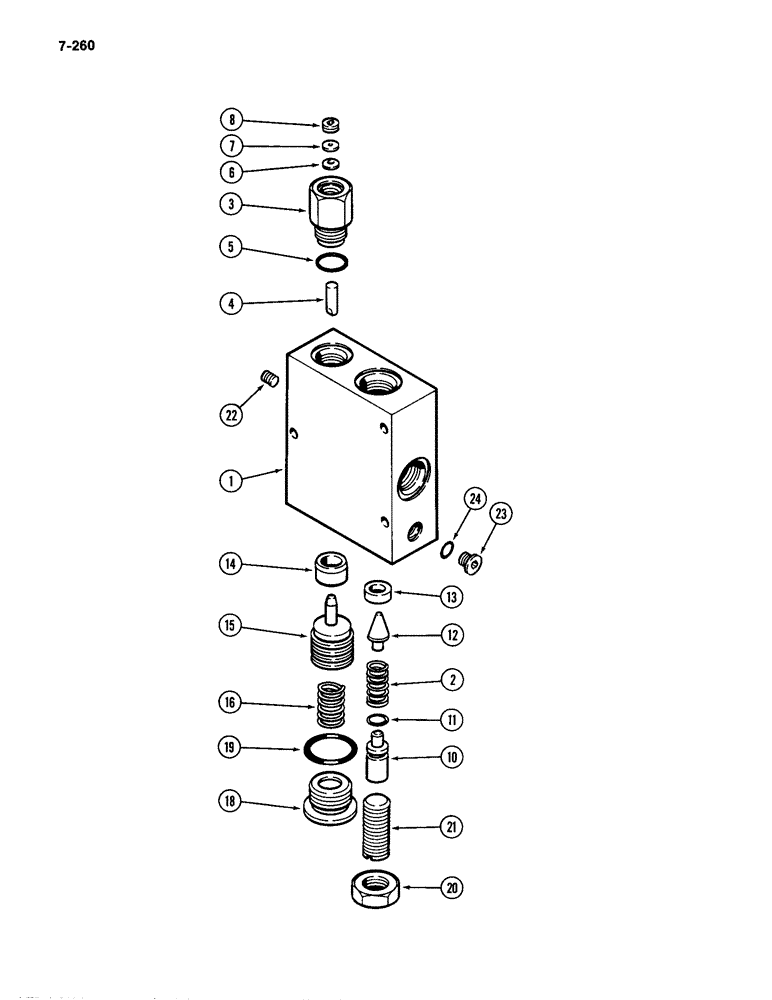

Схема запчастей Case IH 2094 - (7-260) - PRESSURE CONTROL VALVE, IF EQUIPPED (07) - BRAKES
11
5
23
8
3
20
10
12
22
24
6
19
2
15
14
13
7
18
4
16
21
1

Артикул

Название

Примечание

Количество

A147688

VALVE

ASSEMBLY - pressure control, Includes: Refs. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A147688) (Reference A47874)

1шт.

2

A47875

SPRING

- valve

1шт.

A47876

ADAPTER

KIT - unloading, Includes: Refs. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter (Order A4876) (Reference No. A47877)

1шт.

4

A47878

PISTON

- adapter

1шт.

6

A47879

WASHER

- stop

1шт.

7

A47880

WASHER

- orifice

1шт.

8

A47881

SCREW,Lock, 7/16" - 20 x 1.56"

- lock

1шт.

10

S115827

RETAINER

- spring

1шт.

11

S115828

O-RING,0.301" ID x 0.441" OD x 0.7"

- retainer (Order N8539)

1шт.

12

S115830

CONE

- valve

1шт.

13

S115831

SEAT

- valve cone

1шт.

14

S115835

SEAT

- valve

1шт.

15

S115836

PISTON

- valve

1шт.

16

S115837

SPRING

- piston

1шт.

S115838

KIT

O-RING KIT - valve (Not shown)

1шт.

18

S115845

PLUG

- special

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8 inch (19 x 23 x 3 mm)

1шт.

20

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

21

176-291

SCREW,Sl Hdls, 5/8" - 18 x 1 1/2", Flat Pt

- set, 5/8 NF x 1-1/2 inch

1шт.

22

178-1302

SCREW,Hdls Hex Skt, #10 - 32 x 1/4", Flat Pt

- hex socket set, No. 10-32 x 1/4 inch

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

1/4 inch tube, Incl Ref 24 Hex Soc, 7/16"-20 ORB

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

Выбрано товаров: 25
