Запчасти Case IH 2094 (7-258) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED (07) - BRAKES

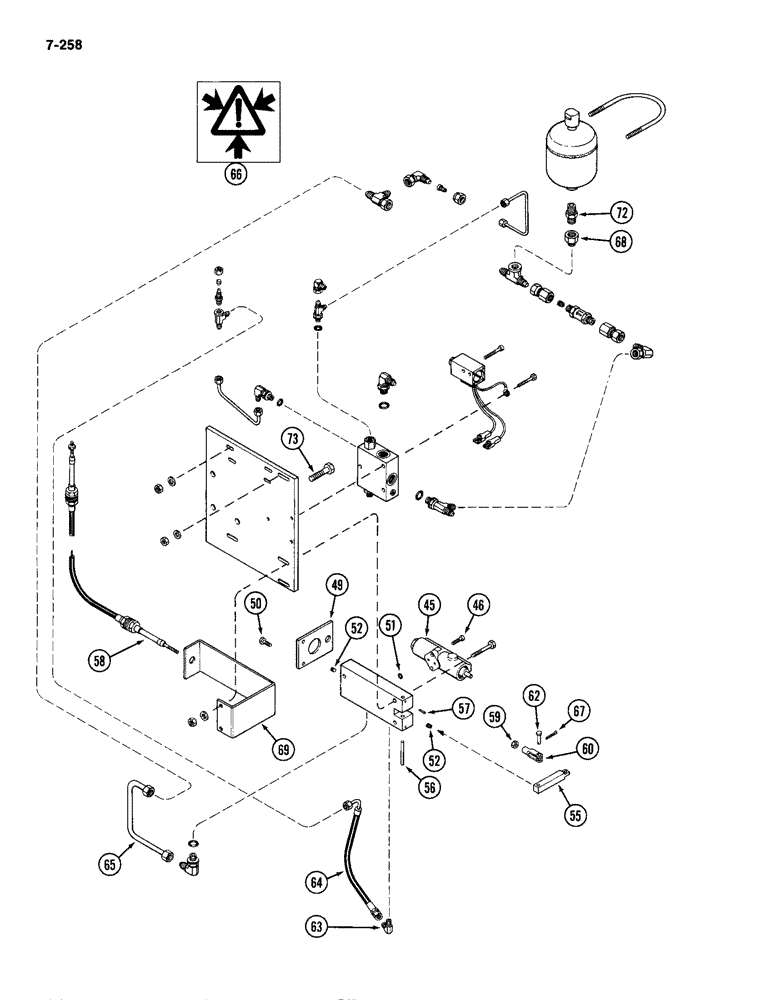

Схема запчастей Case IH 2094 - (7-258) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED (07) - BRAKES
67
52
60
59
49
46
56
50
62
66
68
69
55
63
57
45
73
72
64
51
52
58
65

Артикул

Название

Примечание

Количество

A160617

BRAKE

ATTACHMENT - emergency hand brake (Continues from Figure 7-256) (Order Components), Includes: Refs. 45 - 73

1шт.

45

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 7-262)

1шт.

46

61-615

BOLT - hex socket head, 5/16 NC x 1 inch

2шт.

49

A149095

BRACKET

- cable mounting

1шт.

50

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

51

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- pressure valve (Order N8539)

2шт.

52

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8 inch PT

2шт.

55

A149096

LINK

- valve actuating

1шт.

56

A147859

PIN

- pivot, link

1шт.

57

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

58

A135243

CABLE

ASSEMBLY - control

1шт.

59

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

60

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - clevis, adjustable

1шт.

62

141-52

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

63

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

64

A160915

HOSE

ASSEMBLY - manifold drain

1шт.

65

A160560

TUBE

ASSEMBLY -, Serial Range: accumulator-manifold

1шт.

66

321-4675

DECAL

- pressure symbol

1шт.

67

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

68

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

CONNECTOR - straight

1шт.

69

A160914

GUARD

- pressure valve

1шт.

72

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE -pipe, 1/2 inch PT

1шт.

73

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

Выбрано товаров: 23
