(7-256) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED

Запчасти Case IH 2094 (7-256) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED (07) - BRAKES

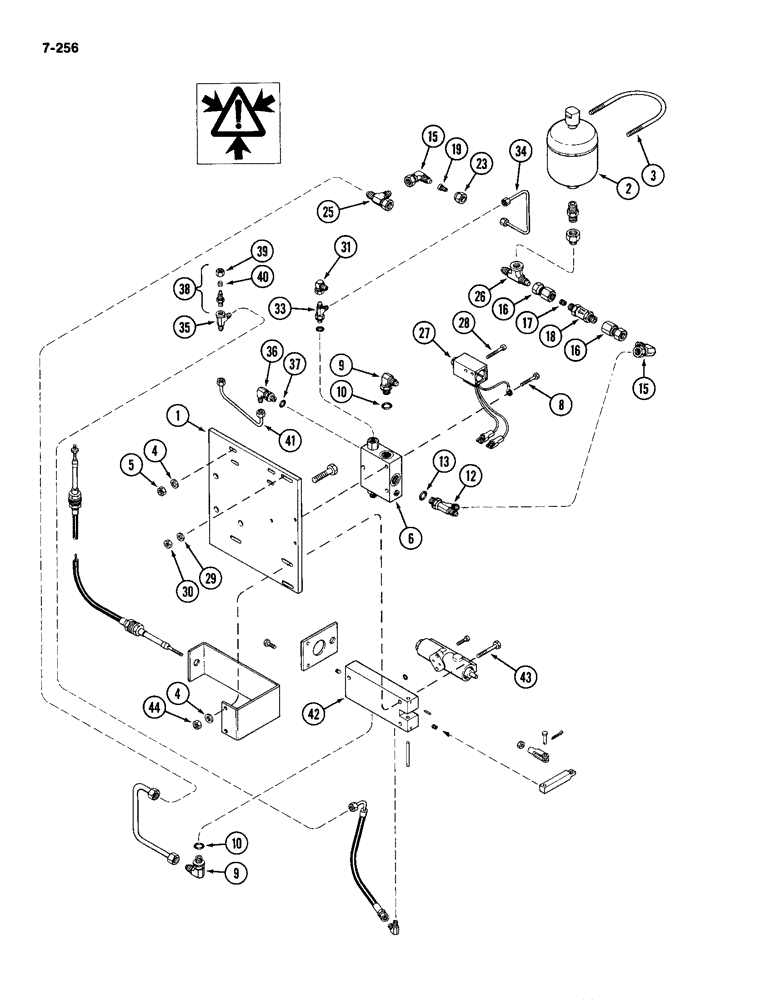

Схема запчастей Case IH 2094 - (7-256) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED (07) - BRAKES
19
9
40
15
30
12
23
10
2
15
38
36
6
16
26
33
5
37
43
13
44
9
27
31
25
34
35
42
8
29
28
41
16
4
4
1
18
3
10
17
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A160617

BRAKE

ATTACHMENT - emergency hand brake (Machinery Item), Includes: Refs. 1 - 44

1шт.

1

A160555

BRACKET

- mounting

1шт.

2

A160604

ACCUMULATOR

1шт.

3

A160761

CLAMP

- accumulator

1шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

5шт.

5

129-123

NUT,3/8"-24, G5

2шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - pressure control, See Figure 7-260

1шт.

8

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 1/2 tube, 3/4-16 thread, Includes: Ref. 10

2шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2 tube, Includes: Ref. 13 3/4"-16, 37º x 3/4"-18, O-Ring Run

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

16

218-1560

HYD CONNECTOR,37º, Sw, 7/16"-20 x 3/8"-18 NPTF

CONNECTOR ASSEMBLY - straight

2шт.

17

A147854

FITTING

ORIFICE - set screw

1шт.

18

A147853

VALVE

ASSEMBLY - check

1шт.

19

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

- elbow to tube

1шт.

23

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - 1/2 inch tube

1шт.

25

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Assy, 1/2 inch tube 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

26

218-574

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- hydraulic

1шт.

27

A147858

SWITCH

ASSEMBLY - pressure hydraulic

1шт.

28

165-29

SCREW,#10 - 24 x 2"

- hex socket head, No. 10-24 x 2 inch

1шт.

29

195-101

WASHER,3/16"

- 1/4 x 9/16 x 3/64 inch (6 x 14 x 1 inch)

1шт.

30

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

31

218-989

ELBOW,90 Degree, 7/16"-20 Sw x 1/8" NPT

- 90 degree

1шт.

33

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable

1шт.

34

A147855

TUBE

ASSEMBLY - signal pilot

1шт.

35

218-631

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Fem Run

- 1/4 inch tube

1шт.

36

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 37

1шт.

37

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

38

222-2631

FITTING,17/32"-24 x 1/8" NPT Fem, Comp

CONNECTOR ASSEMBLY - 3/8 tube, 1/2 inch PT, Includes: Refs. 39 and 40

1шт.

39

222-2601

NUT

NUT - 3/8 inch tube

1шт.

40

222-2611

SLEEVE

- 3/8 inch tube

1шт.

41

A160607

TUBE

ASSEMBLY - drain

1шт.

42

A160553

MANIFOLD

- control valve pressure

1шт.

43

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.
