Запчасти Case IH 2094 (7-254) - EMERGENCY HAND BRAKE, BRAKE AND LEVER SECTION, IF EQUIPPED (07) - BRAKES

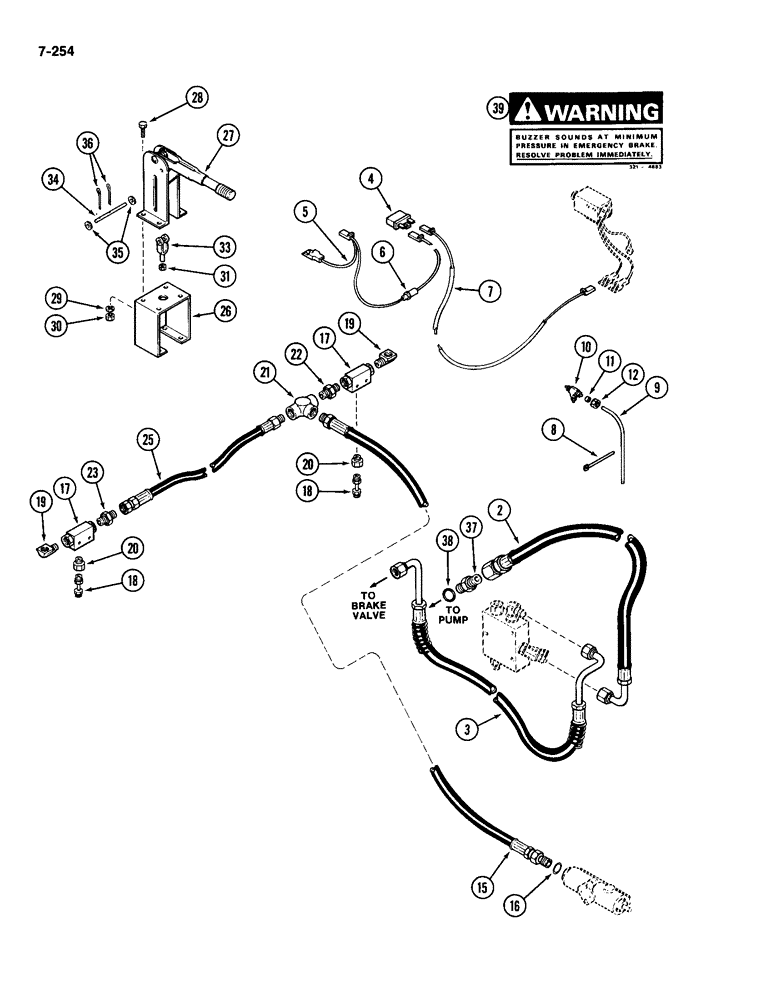

Схема запчастей Case IH 2094 - (7-254) - EMERGENCY HAND BRAKE, BRAKE AND LEVER SECTION, IF EQUIPPED (07) - BRAKES
10
20
35
38
7
33
17
4
9
11
30
25
37
15
16
2
31
6
12
28
20
23
8
26
21
19
18
17
36
27
3
39
34
18
19
5
22
29

Артикул

Название

Примечание

Количество

A160617

BRAKE

ATTACHMENT - emergency hand brake (Machinery Item), Includes: Refs. 2 - 39

1шт.

2

A160596

HOSE

ASSEMBLY - pump to pressure valve

1шт.

3

A163321

HOSE

ASSEMBLY - pressure valve to brake valve

1шт.

4

A143506

BUZZER

- warning

1шт.

5

A160605

ELECTRICAL WIRE

WIRE ASSEMBLY - power, 26 inch (660 mm), Includes: Ref. 6

1шт.

6

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere

1шт.

7

A160606

ELECTRICAL WIRE

WIRE ASSEMBLY - buzzer to switch, 50 inch (1250 mm)

1шт.

8

R38237

STRAP

STAP - nylon tie

2шт.

9

A66118

TUBE

- nylon, 3/8 O.D. x 38 inch (10 x 905 mm) (Order A167912 152 inch long)

1шт.

10

222-2751

HYD CONNECTOR

TEE - 3/8 tube, 17/32-24 inch thread, Includes: Refs. 11 and 12

1шт.

11

222-2611

SLEEVE

- 3/8 inch tube

3шт.

12

222-2601

NUT

NUT - 3/8 inch tube

3шт.

15

A160599

HOSE

ASSEMBLY - pressure valve to brake, Includes: Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

17

A143476

VALVE

- shuttle

2шт.

18

A160900

FITTING

-, Serial Range: brake-valve

2шт.

19

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degree, 1/4 inch tube

2шт.

20

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - straight

2шт.

21

217-1161

TEE,1/4"-18 Female

- 1/4 inch PT

1шт.

22

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

CONNECTOR - straight, 1/4 x 1/8 inch PT

1шт.

23

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/4 inch tube

1шт.

25

A149092

HOSE

ASSEMBLY - right to left brake

1шт.

26

A160554

SUPPORT

- brake lever

1шт.

27

A149591

LEVER

ASSEMBLY - hand brake

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

33

A149134

YOKE

- adjustable

1шт.

34

A161784

PIN

- clevis

1шт.

35

195-5

WASHER

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

36

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

37

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight,1/2 tube, 3/4-16 inch thread, Incl. Ref 38

1шт.

39

321-4683

DECAL

- warning

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

Выбрано товаров: 35
