Запчасти Case IH 2094 (7-252) - DIFFERENTIAL LOCK MECHANISM (07) - BRAKES

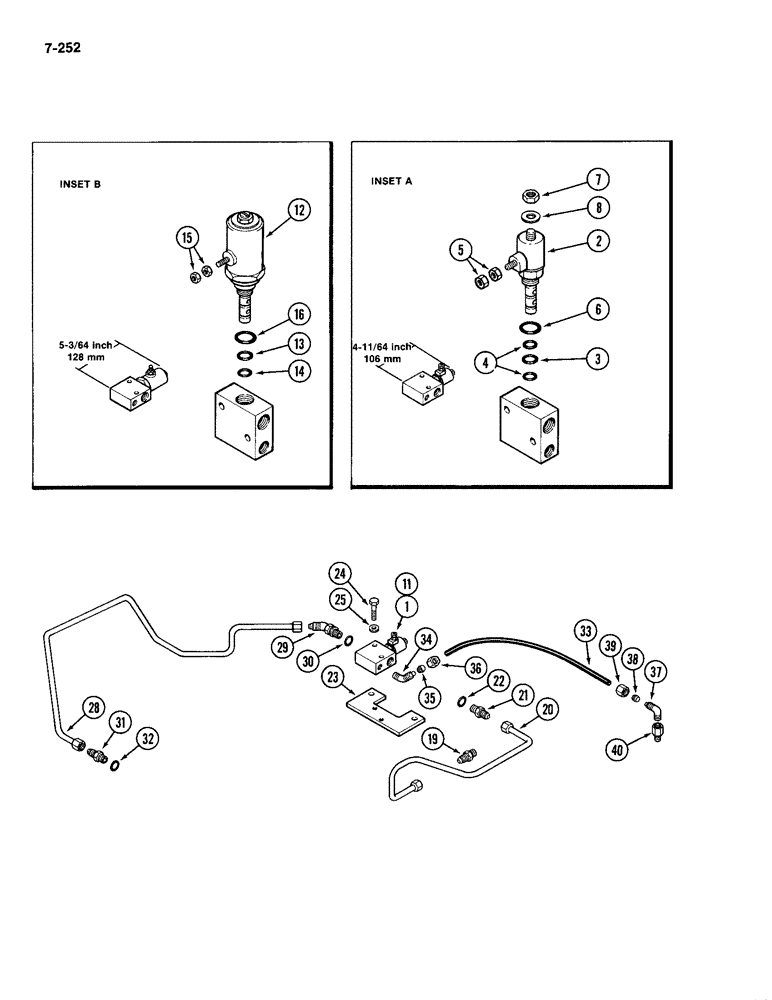

Схема запчастей Case IH 2094 - (7-252) - DIFFERENTIAL LOCK MECHANISM (07) - BRAKES
5
33
29
38
3
15
36
13
16
4
31
37
22
40
19
12
8
23
6
28
11
30
14
21
35
20
25
7
24
1
32
34
2
39

Артикул

Название

Примечание

Количество

1

A176599

VALVE

ASSEMBLY - differential lock, 4-11/64 inch long (106 mm) (See Inset A), Includes: Refs. 2 - 8

1шт.

2

A48644

OIL COOLER

COIL - valve

1шт.

3

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- coil, 5/8 inch (16 mm)

1шт.

4

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- coil

2шт.

5

129-16

NUT,#8-32

2шт.

7

129-123

NUT,3/8"-24, G5

WASHER - flat, 25/64 x 3/4 x 1/16 inch (10 x 19 x 2 mm)

1шт.

8

195-2252

WASHER,.391" x 3/4" x .065"

- flat, 25/64 x 3/4 x 1/16 inch (10 x 19 x 2 mm)

1шт.

11

A163322

VALVE

VAVLE ASSEMBLY - differential lock, 5-3/64 inch long (128 mm) (See Inset B), Includes: Refs. 12 - 16

1шт.

12

A48262

COIL

- valve

1шт.

Internal Parts Not Furnished

1шт.

13

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 5/8 inch (16 mm) (Order G102845)

1шт.

14

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- valve

1шт.

15

129-16

NUT,#8-32

2шт.

19

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

20

A169802

PIPE

HOSE - differential lock valve (Replaces A163014)

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

23

A163013

BRACKET

- differential lock valve

1шт.

24

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

25

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- valve stud, Keps, No. 8-32 (Not Shown)

1шт.

28

A162604

TUBE

-, Serial Range: valve-transmission

1шт.

29

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- differential lock valve, 45 degree, Includes: Ref. 30

1шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

31

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - straight, Includes: Ref. 31

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

33

A137319

TUBE

- nylon, 15 inch long (381 mm) (Order A167912 hose 152 inch long)

1шт.

34

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- valve, 45 degree, Includes: Refs. 35 and 36

1шт.

35

222-2611

SLEEVE

- 3/8 inch tube

1шт.

36

222-2601

NUT

NUT - 3/8 inch tube

1шт.

37

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- transmission housing, 90 degree, Includes: Refs. 38 and 39

1шт.

38

222-2611

SLEEVE

- 3/8 inch tube

1шт.

39

222-2601

NUT

NUT - 3/8 inch tube

1шт.

40

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

CONNECTOR - straight reducer

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

Выбрано товаров: 36
