Запчасти Case IH 2094 (7-248) - BRAKE VALVE ASSEMBLY (07) - BRAKES

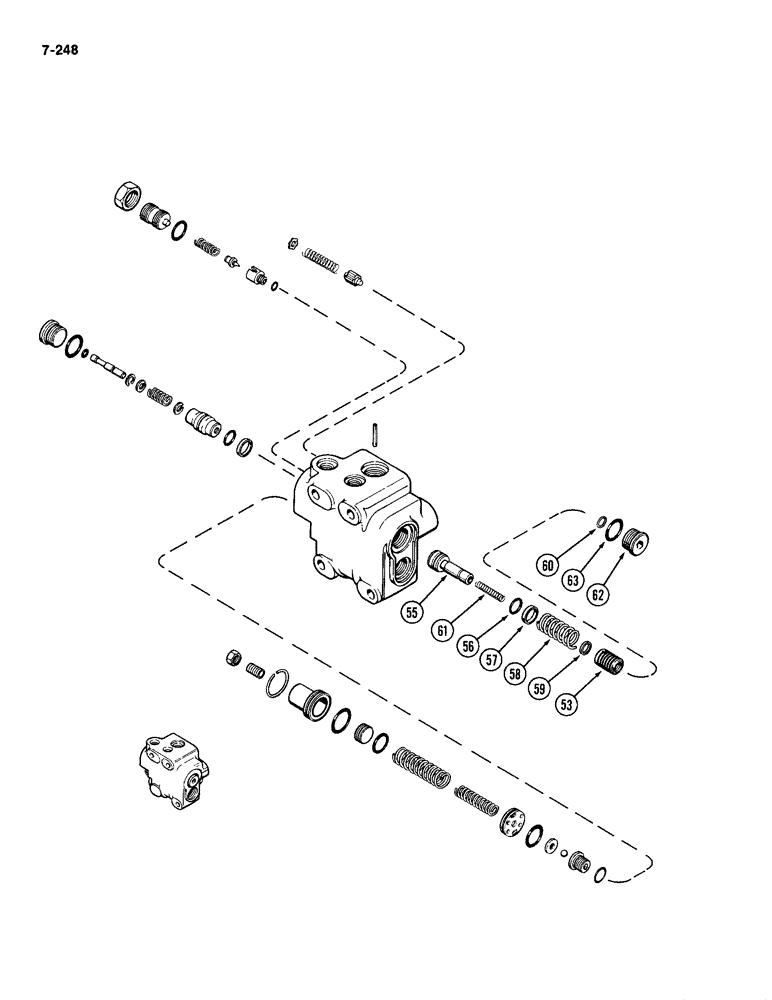

Схема запчастей Case IH 2094 - (7-248) - BRAKE VALVE ASSEMBLY (07) - BRAKES
58
53
55
59
56
60
62
57
61
63

Артикул

Название

Примечание

Количество

G105128

VALVE, BRAKE

VALVE ASSEMBLY - power brake, Continued from Figure 7-24 , Includes: Refs. 53 - 55 and 2 - 51 on Fig. 7-246

1шт.

G105034

PRESSURE REGULATOR ASSEMBLY - valve (Order Components), Includes: Ref. 53

1шт.

53

G105038

SPOOL

SP00L - pressure regulator

1шт.

G105035

PISTON - pressure regulator (Order Components)

1шт.

55

G105037

PISTON

- pressure regulator, Includes: Refs. 56 and 57

1шт.

56

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- piston

1шт.

57

G100797

RING

SEAL - ring, 11/16 x 3/4 x 1/16 inch (18 x 19 x 2 mm)

1шт.

58

G105036

SPRING

- regulator piston

1шт.

59

G102104

WASHER

- orifice, 7/16 x 9/16 x 3/64 inch (11 x 14 x 1 mm)

1шт.

60

G100792

RING

- retaining

1шт.

61

G100794

SPRING

- regulator piston return,1/4 inch O.D. (6 mm)

1шт.

62

86625138

PLUG,7/18" - 14

Assy, Piston, Includes Ref. 63 Hex Soc, 7/8"-14 ORB

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/2 inch (19 x 16 x 2 mm)

1шт.

Выбрано товаров: 13
