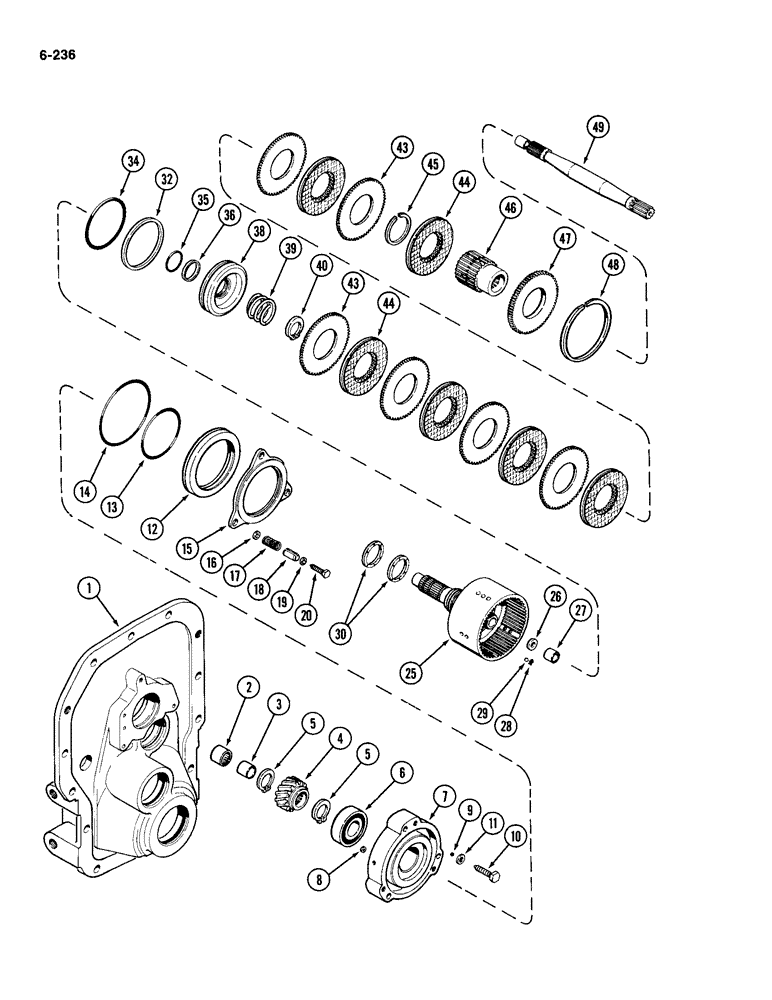

Запчасти Case IH 2094 (6-236) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO (Order A67537 kit)

1шт.

2

K690321

NEEDLE BEARING

BEARING - needle, 1-7/8 inch O.D. (48 mm)

1шт.

3

A142869

ROLLER CAGE BEARING

RACE - needle bearing, 1-1/2 inch (38 mm)

1шт.

4

A152151

GEAR

- PTO input (24 internal and 19 external teeth)

1шт.

5

A144595

SNAP RING,#156, Ext

Ring, Snap, , brg and gear #156, Ext

2шт.

6

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, input 3-35/64 inch O.D. (90 mm)

1шт.

7

A142868

CARRIER

- PTO brake piston

1шт.

8

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 7/16 inch (11 mm)

2шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

9

211-9

BALL,5/16" Dia

- 5/16 inch diameter steel (8 mm)

1шт.

10

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch (Grade 8)

3шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 3/4 inch (19 mm)

3шт.

12

A150236

PISTON

- PTO brake

1шт.

13

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

- 5 inch (127 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

14

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- 6-1/2 inch (165 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

15

A142864

BRAKE

- PTO, with lining

1шт.

16

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- 1/2 inch (13 mm)

3шт.

17

A152184

SPRING

- brake return, 1-35/64 inch free length (39 mm)

3шт.

18

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

3шт.

19

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

20

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch (Grade 8)

3шт.

25

A156294

CARRIER

ASSEMBLY - PTO clutch, Includes: Refs. 26 - 29

1шт.

26

A63265

WASHER

- thrust, 15/16 inch (24 mm)

1шт.

27

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- shaft

1шт.

28

A153400

SNAP RING,0.312", Int, #31

ball 0.312", Int, #31

1шт.

29

211-8

BALL,9/32" Dia

(7 mm) 9/32" Dia

1шт.

30

A59005

SEAL

- ring

2шт.

32

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, 5-7/64 inch O.D. (130 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

34

A155963

SEAL

O-RING - piston seal, 4-21/32 inch (118 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

35

A155964

O-RING,1.812" ID x 0.073" Thk

O-RING - piston seal, internal, 1-51/64 inch (46 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

36

A63258

SEAL

- piston, 1-17/32 inch ID (39 mm)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

38

A155962

PISTON

- PTO clutch

1шт.

39

A63260

SPRING

- piston return, 1-3/4 inch free length (44 mm)

1шт.

40

T37909

SNAP RING,#150, Ext

Ring, Snap, , piston #150, Ext

1шт.

43

A67156

PLATE

- clutch, steel

6шт.

44

A67130

PLATE

- clutch, friction

6шт.

45

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, PTO hub

1шт.

46

A156284

HUB

- PTO clutch

1шт.

47

A50643

PLATE

- clutch backup

1шт.

48

A50639

RING

- snap, backup plate

1шт.

49

A154932

SHAFT

- PTO input, rear

1шт.

A49420

SEAL

KIT - PTO clutch and brake seal, Includes: Refs. 8, 13, 14, 32, 34, 35, and 36

1шт.
